Best fit for combining the production of small AND midsized optics

SPM-50 features highest sensitivity for the handling of small lenses combined with best force required for processing larger diameters.

Efficient and flexible

The SPM-50 has been designed to be sensitive towards processing small lenses, without compromising on the force and robustness required for processing larger diameters.
Faster than expected, allowing pre- and fine grinding with one setup and minimal sub-surface damage.

Reliable and precise

It offers repeatable process performance through the improved machine and axes cooling that ensure an optimal and constant processing temperature during the grinding process.
The direct driven linear drives and servo motors ensure highest repeat positioning accuracy during processing.

Easy to use

Coated working chamber for fast and easy cleaning
Maintenance friendly
Compact footprint

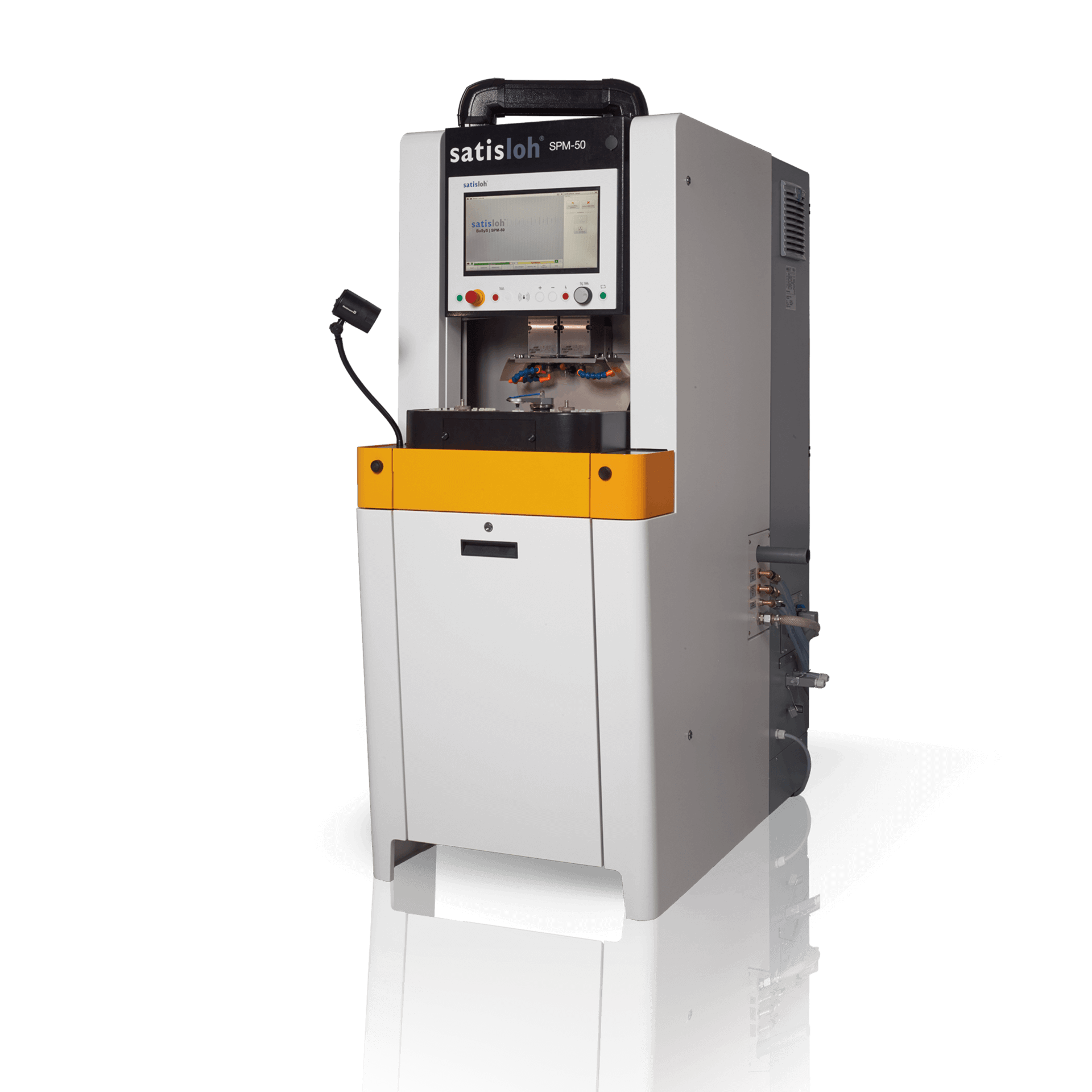

Frontal view of Satisloh SPM-50 grinding machine used in precision optics manufacturing.

Laboratory testing machine with a metallic cylindrical sample holder under inspection tools.

Precision laboratory machine with a probe measuring a metallic cylindrical sample

Tech Specs

Geometries:	Spheres, aspheres
Working range:	Working diameter: 5-50 mm
Dimensions (wxdxh):	700 x 1350 x 1950 mm / 28 x 53 x 77 in
Weight:	Approximately 895 kg / 1973 lb

All technical data are subject to change without notice. Verify details with Satisloh.

Documents

SPM-50 Grinder & SPS-50 Polisher (Brochure)

pdf - 1 MB

Download
