Next generation manual lens polishing

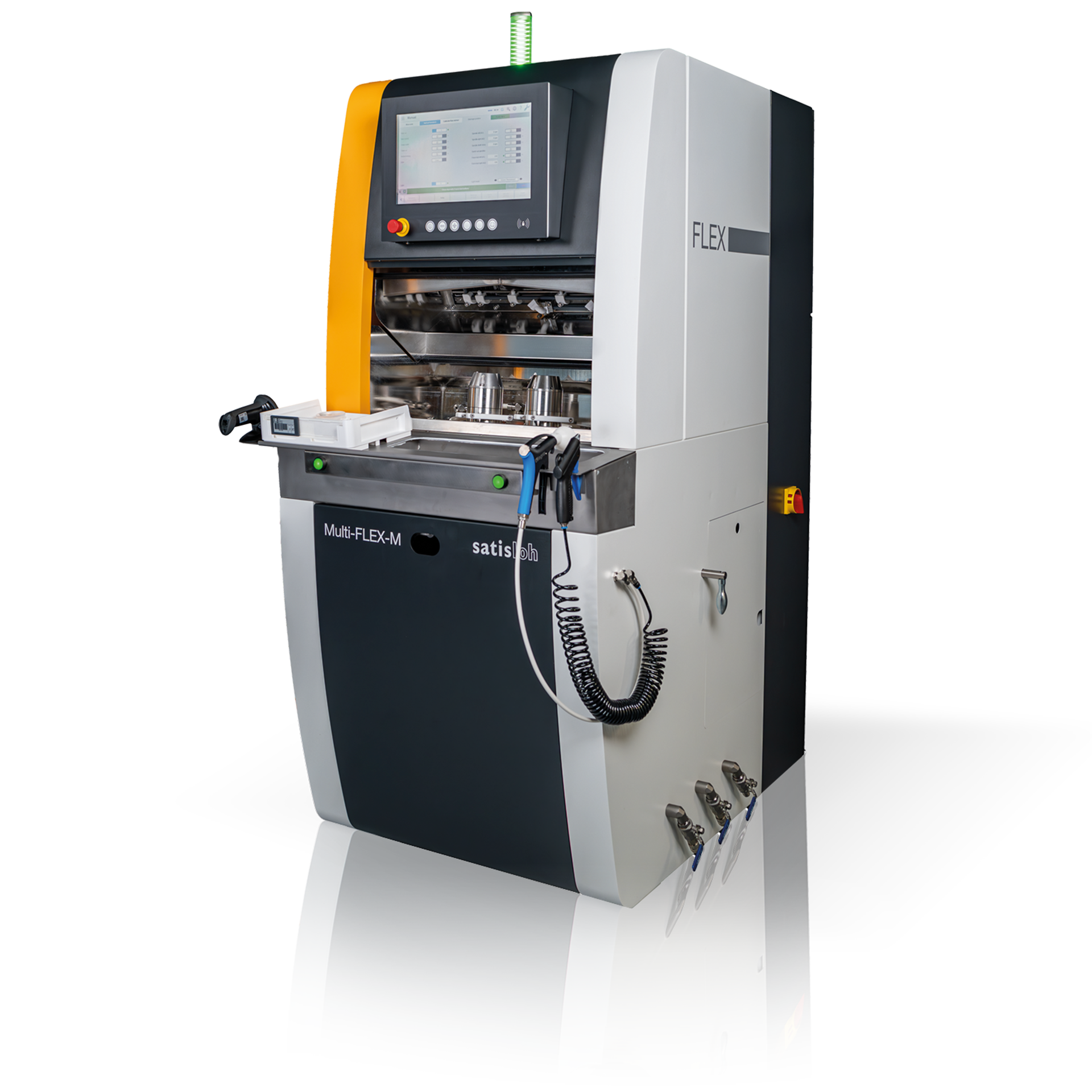

An evolution in manual lens polishing, the compact dual-spindle Multi-FLEX-M produces up to 50 lenses per hour. It combines the best of its predecessor, the Toro-FLEX, with the same Evolution-U polishing process and dynamic kinematics as known from the automatic Multi-FLEX and proven in over 650 installations worldwide. Coupled with a VFT-macro digital generator it makes a perfect surfacing pair for labs with manual production or Metro-Labs.

  • 1-step Evolution-U polishing process provides faster polishing times and an exceptionally wide working range of up to -18 dpt.
  • Universal Tool Technology reduces the number of polishing tools required to just 1, for reduced tool inventory, simplified operation and fewer tool changes
  • Outstanding tool lifetime of up to 25,000 seconds for extremely low cost/lens
  • Intelligent polishing tools with embedded RFID tag enable tool usage tracking and improved efficiency
  • Easy-to-use integrated industrial PC with touchscreen seamlessly  integrates with lab IT infrastructure, eliminating the need for additional polishing servers
  • Backup, diagnosis & remote support functions
  • MES-360 Lite included for basic data analysis
  • Software-controlled cleaning cycle and additional in-chamber bellow cleaning nozzles ensure machine is always clean and ready for use
  • Compact footprint & accessible machine design for easy maintenance
Close-up of dual polishing tools processing glass lenses inside an industrial machine.
Close-up of a polishing tool inside an industrial lens processing machine.
Technician cleaning a processed glass lens with compressed air inside a machine.
Worker scanning a barcode on a tray with a handheld scanner.
Technician connecting and inspecting cables inside an industrial machine.
Two technicians reviewing machine data on a touchscreen display.

Highlights

Universal Tool Technology
–

One tool covers all lens designs, materials and working ranges. It optimizes the production flow with fewer tool changes and reduces polishing tool inventory and complexity.

Evolution-U Process
–

Polishing process and dynamic kinematics as known from the automated Multi-FLEX offer the widest working range and guarantee highest polishing quality.

Integrated Windows industrial PC
–

Easy machine operation via touchscreen, with backup, diagnosis and remote support functionalities and eliminating additional polishing servers.

Video

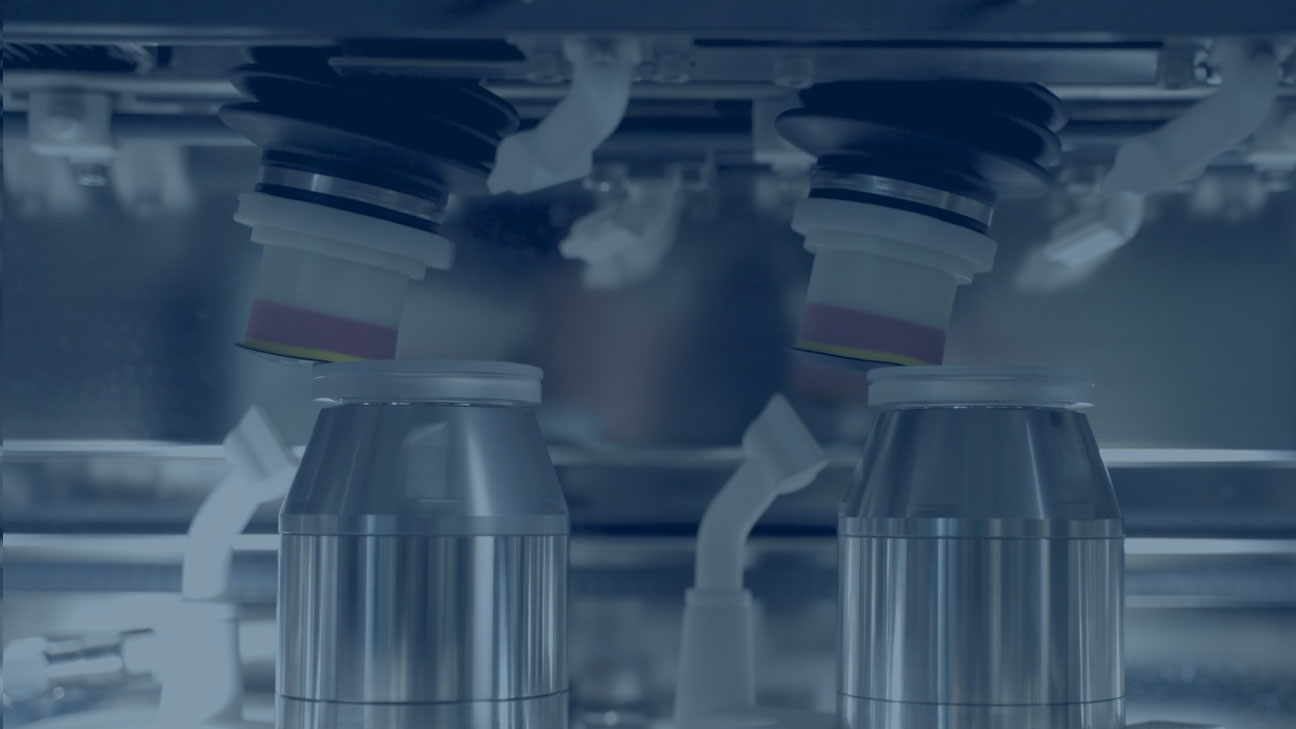

Close-up of dual polishing heads processing glass lenses inside an industrial machine.

Processes & Tools

Process Evolution-U
Polishing steps 1-step polishing process
Characteristics
  • Lenses that will be hard coated
  • Knife-Edge lenses capability
  • High curvature lenses
Process availablity Pre-installed
Polishing Tool Universal Extended Range FLEX

Multi-FLEX-M comes with Evolution-U process pre-installed which covers the complete working range.

Multi-FLEX polishing machines include a free-of-charge license to use the Evolution-U process and other specialty polishing processes provided by Satisloh under the condition that customer is buying and using original polishing tools from Satisloh.

Alternatively, customer may purchase a royalty-bearing license (one-time fee per machine) to use these Satisloh polishing processes with third party tools, which are not infringing Satisloh’s IP rights.

Tech Specs

Productivity:Up to 50 lenses/hour
Lens materials:All organic lens materials
Working range:
  • Concave: 0 to -18 dpt.
  • Lens diameter: 48-85 mm
  • Cylinder: 0 to 6 dpt.
Dimensions (wxdxh):803 x 1256 x 2142 mm / 32 x 50 x 85 inches + signal lamp
Weight:420 kg / 926 lbs (incl. polishing supply unit)
Power supply:200-240V; 50/60 Hz; 2,5kVA; max. 10kVA; 1 phase + neutral + ground; Fuse 16A
Compressed air:8 bar, dried, oil-free, approx. 20 l/min

All technical data subject to change without notice. Verify details with Satisloh.
