Microseparator HC | optical lens generating filtering

Automated lens debris filtering & coolant management

Available in different configurations, designed to support up to 6, or more digital lens generators:

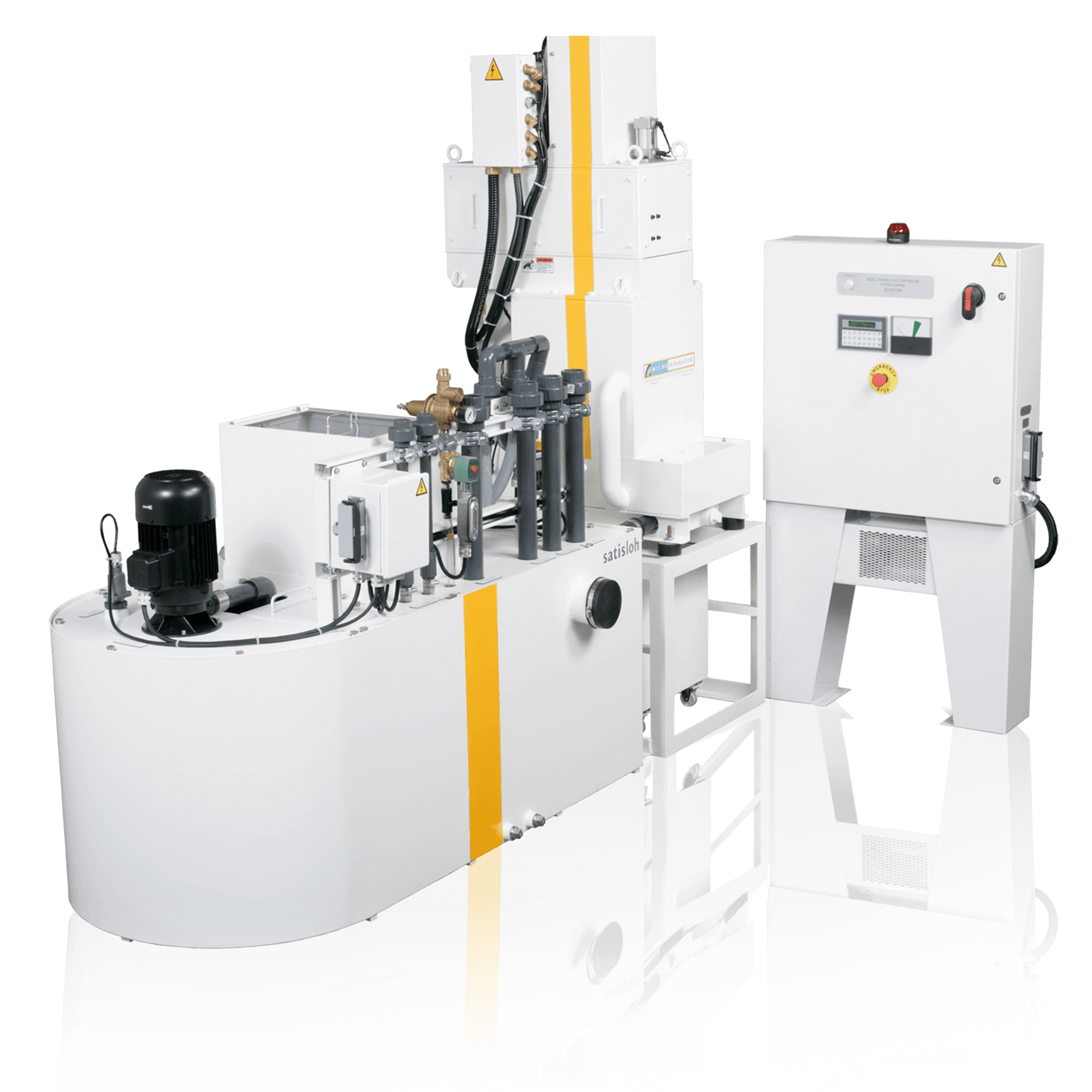

Microseparator® HC3 & HC3 Plus – Automated coolant cleaning system for up to 3 generator, organic lens materials only. Processes debris from up to 300 lenses per hour. Designed for operation remote from generators for optimum use of surfacing lab space. Can be up to 20 meters (98 feet) away from generator.
Microseparator® HC6 & HC6 Plus – Automated coolant cleaning system for mass manufacturing environments for up to 6 high throughput lens generators, organic materials only. Processes debris from up to 600 lenses per hour. Designed for operation remote from generators for optimum use of surfacing lab space. Can be up to 50 meters (164 feet) away from generator.

	HC3/HC3 Plus	HC6/HC6 Plus
Supported Generators	Up to 3	Up to 6
Required Pump station	1 per generator	1 per generator
Chip Compactor or Chip Separator with tank	1 per generator (optional)	1 per generator (optional)
WEIMA briquette TH600 Vario	1 per 2 HC3/HC3 Plus	1 per HC6/HC6 Plus
WEIMA briquette TH800 Vario	-	1 per 2 HC6/HC6 Plus

Productivity:	HC3 Up to 300 lenses/hour HC3 Plus Up to 300 lenses/hour (recommended when material mix is mostly CR) HC6 & HC6 Plus Up to 600 lenses/hour
Lens material:	All standard organic materials
Dimensions (wxdxh):	HC3 1334 x 2729 x 2127 mm / 52.5 x 107.5 x 83.7 inches HC3 Plus 1300 x 2814 x 2454 mm / 51.2 x 110.8 x 96.6 inches HC6 3300 x 3400 x 2728 mm / 134 x 130 x 107 inches HC6 Plus 3472 x 3627 x 2885 mm / 137 x 143 x 114 inches
Weight:	HC3 943 kg / 2079 lbs HC3 Plus 1515.5 kg / 3341 lbs HC6 2730 kg / 6000 lbs HC6 Plus 3265 kg / 7200 lbs
