GI-AP

The GI-AP is a state of the art 5-axis CNC polishing system for quality pre- and fine polishing of various optical shapes with Ø up to 500 mm. In combination with ADAPT, Satisloh’s deterministic correction polishing algorithm, it not only ensures highly accurate aspheric surfaces but also that less iterative steps in production are needed.

Contact me

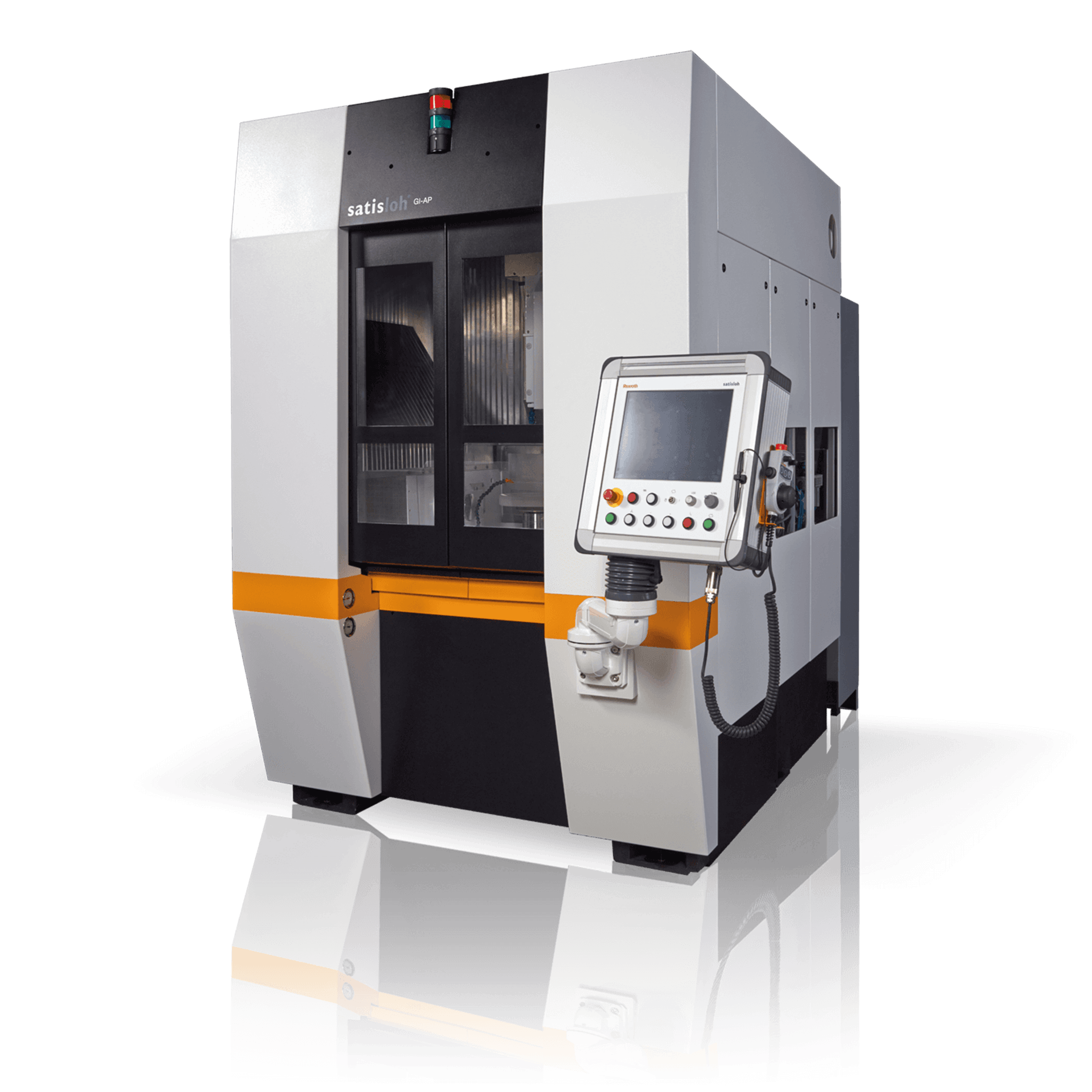

Modern industrial laboratory machine with touchscreen control panel and enclosed chamber

Exceptional Polishing of Complex Geometries

Powerful and versatile functions plus an innovative machine design that allows customer specific adaptations make the GI-AP a perfect choice when it comes to the polishing of spheres, aspheres, freeform surfaces, prisms, and other geometries. An integrated measuring probe and the included dressing function help to keep the production process as short as possible.

Flexible and Efficient

Universal application for spheres, aspheres, prisms, and more complex shapes in different polishing modes
ADAPT technology for most precise and efficient asphere grinding
Tailor-made machine versions meeting specific customer demands
Integrated dressing spindle for tool dressing
Integrated post processor Satisloh CAMPos allows customer specific CAD/CAM applications

Reliable

Direct driven spindles enabling highly dynamic axis movements
Stable and repeatable form accuracy made possible through cooled axes and drives
3D simulation mode for high process safety
Center thickness measurement with integrated measuring probe
Highly stable and vibration-dampening polymer concrete machine base

Easy to use

Easy job setup and editing via menu-guided software interface BaSyS

Industrial laboratory machine with enclosed chamber and integrated touchscreen control panel.

Close-up of laboratory equipment with a probe and coolant nozzles above a rounded sample surface

Close-up of a laboratory testing machine with a probe and coolant nozzles above a cylindrical sample

Tech Specs

Geometries:	Spheres, aspheres, plano optics, cylinders, prisms, domes, rods, and other complex shapes
Working range:	up to Ø 500 mm prisms up to 310 mm
Dimensions (wxdxh):	1670 x 2660 x 2530 mm 66 x 105 x 100 inches
Weight:	Approximately 6,000 kg / 13,228 lb (depending on configuration)

All technical data are subject to change without notice. Verify details with Satisloh.
