After deblocking job tray is scanned and moves into the ART-Glue-Detector.
Detection of glue residue via camera and image recognition software.
Direct communication with LMS and MES.
ART-Glue-Detector identifies the few lenses that require manual cleaning and allows the vast majority of lenses to proceed without any manual intervention.

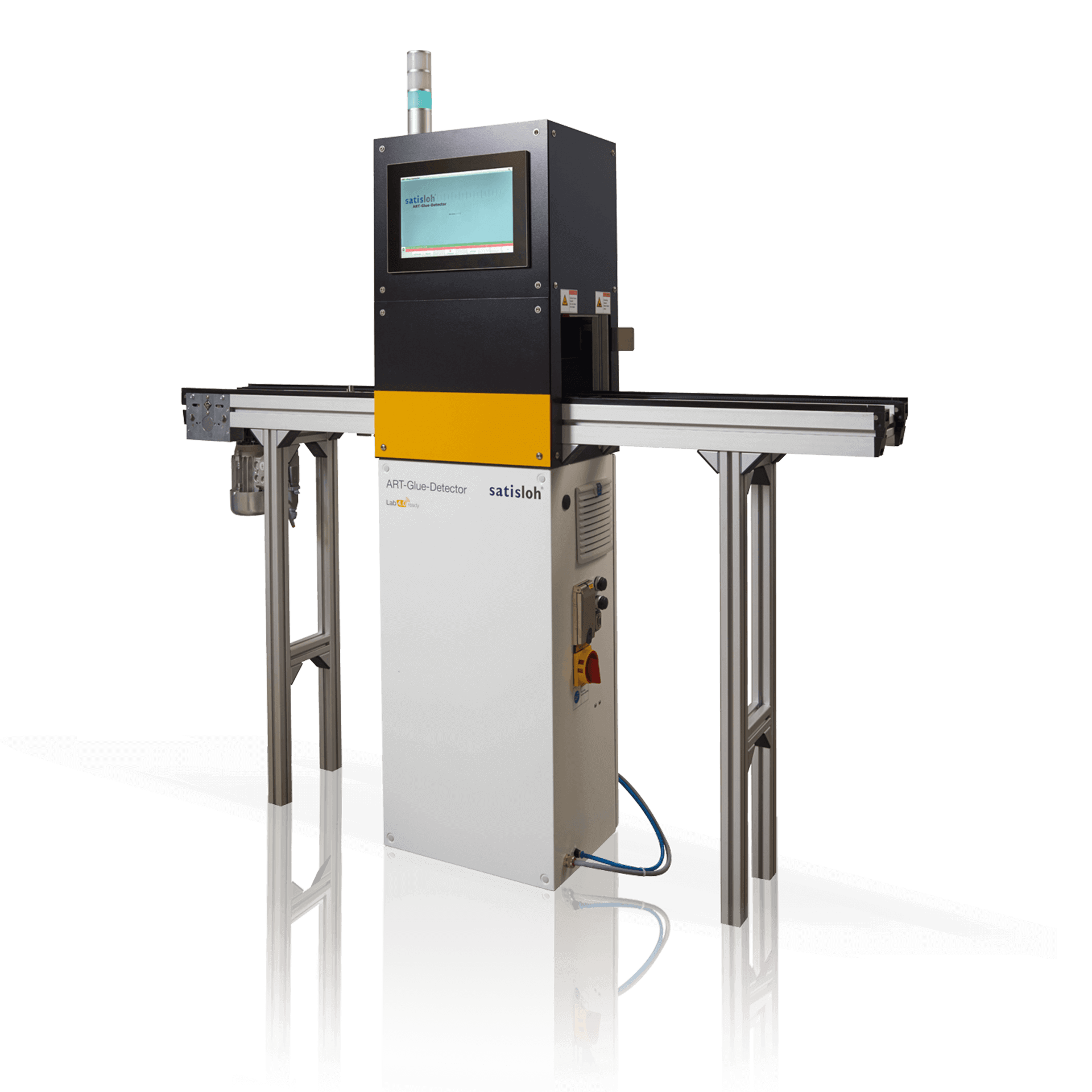

Automated inspection or manufacturing machine with integrated monitor and side conveyor belts

Automated machine processing two glass lenses simultaneously during the manufacturing process

Tech Specs

Productivity:	Up to 300 jobs trays/hour
Working range:	Lens diameter 55 – 85 mm Lens thickness up to 30 mm Plano up to +15 dpt base curve Prism up to 5° Progressives, multi-focals, single vision lenses
Dimensions (wxdxh):	1610 x 415 x 1815 mm / 64 x 17 x 72 inches with conveyor
Weight:	About 130 kg / 287 lb

All technical data subject to change without notice. Verify details with Satisloh.
