Fully automated alloy-free lens blocking

ART, the non-alloy lens blocking technology, employs reusable block-pieces. The connection between lens blank and block-piece for optical lenses is made by UV-curable adhesive. The lens blocker itself features several benefits due to ART:

First of all, the ART-Blocker-A does not require any tape or any block rings.
Secondly, the automated lens blocker does not require any cooling time after blocking.
The availability of multiple block-pieces and diameters optimizes performance.
The lens blocking system does not need manual handling and front-side protection.
Lastly, the automated lens blocker includes imaging and probing. Front side probing enables re-calculation of back curve for most accurate optical power.

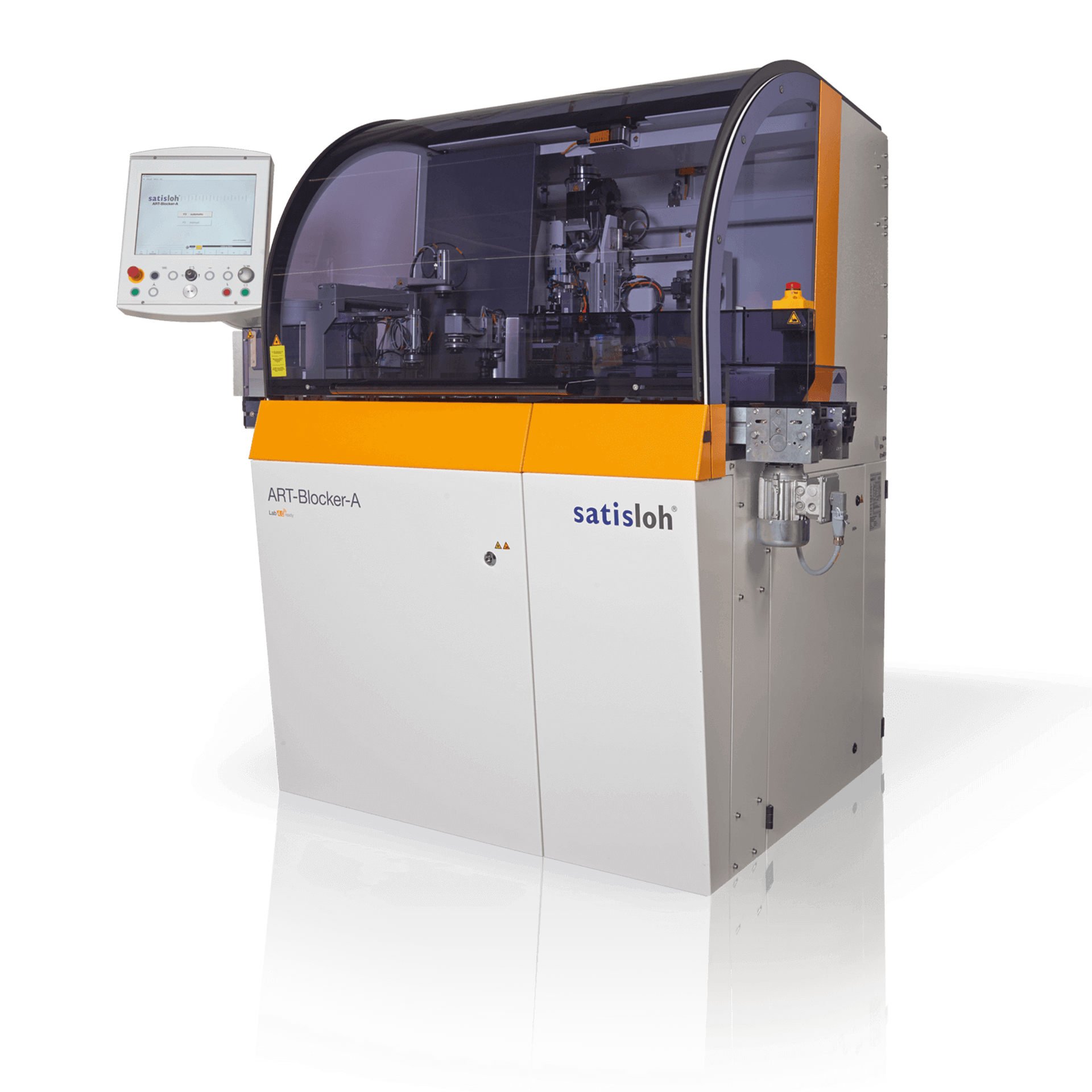

Satisloh ART-Blocker A, automated lens blocking machine, front angle view

ART Alloy replacement technology Lens Blocker

Close-up of a precision manufacturing process where a lens or glass component is being processed in a machine

Video

5 reasons why your lab should move to ART

Switch to Satisloh's Alloy Replacement Technology (ART) for an eco-friendly alternative to traditional alloy blocking. ART eliminates the need for frontside protection tape, reducing environmental impact and ensuring a safer workplace. Make the move now!

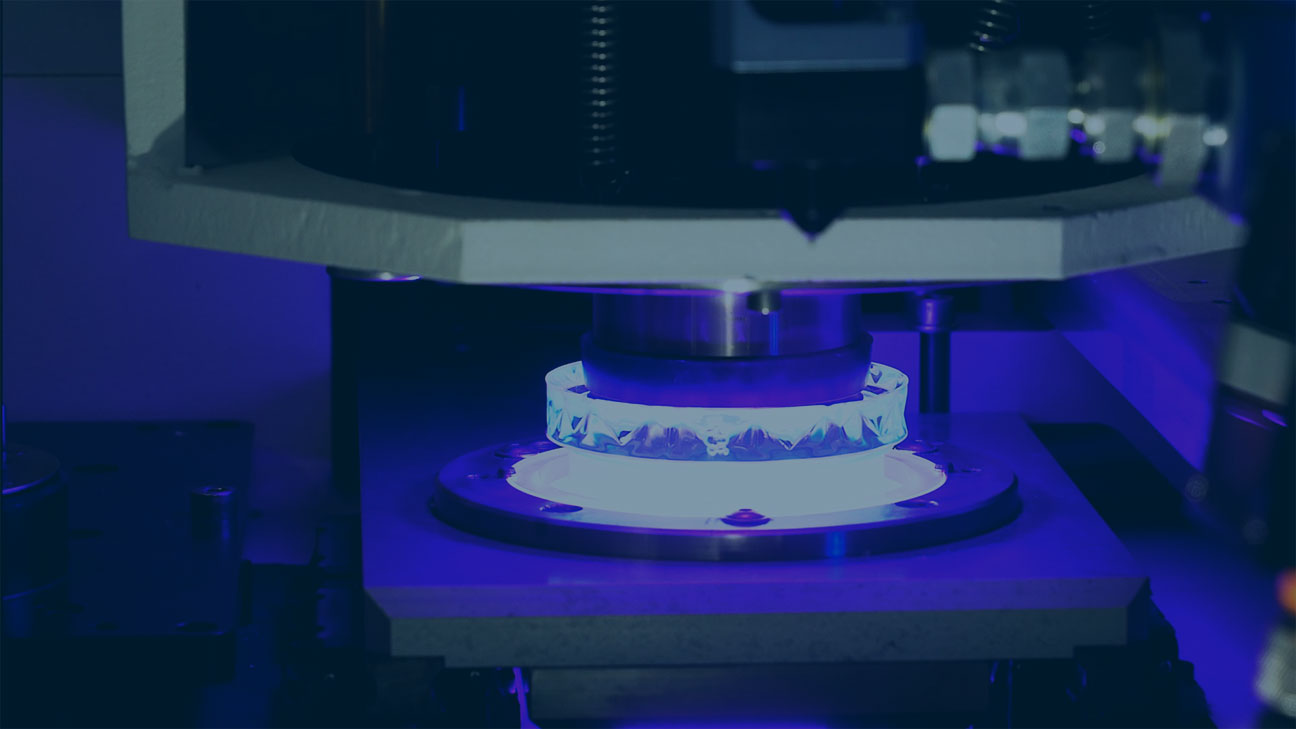

Lens being blocked with alloy free technology from Satisloh. ART-Blocker-A

Tech Specs

Productivity:	Up to 100 lenses/hour
Working range:	Lens diameter 58 – 85 mm Lens thickness up to 30 mm Plano up to +15 dpt. base curve Prism up to 5° Progressives, multi-focals, single vision lenses
Lens material:	All standard organic materials, photochromic and polarized blanks
Dimensions (wxdxh):	1215 x 1236 x 1907 mm / 48 x 49 x 75 inches, without chiller
Weight:	880 kg / 1940 lb

All technical data subject to change without notice. Verify details with Satisloh.

Documents

ART-Blocker-A alloy free lens blocker (Brochure)

pdf - 272 KB

Download

Person holding a tablet displaying charts and graphs from a production performance report.

Purchase a ART-Blocker-A and get a

MES-360 Lite for free.

Your introduction to Industry 4.0 with MES-360 Lite
Increasing transparency and visibility of your equipment performance is key to optimizing your production and reducing costs. MES-360 Lite provides daily reports using pre-established KPI to track machine utilization, production throughput, and top 5 errors.
