Micro spheres & aspheres grinding

The SPM-10 allows for the production of micro optics spheres and aspheres from the submillimeter range up to 10 mm.

Efficient and flexible

The grinding tool spindle offers up to 100,000 rpm for production of smaller workpieces than ever before.
A choice of 3 reception systems available for different workpieces; rotor chuck, vacuum chuck or collet chuck.
Choose between an air bearing or ball bearing spindle, depending on application.
Automated production ready.
Optional integration of the HS-30 automation system allows for highly sensitive micro lens handling.
Low power consumption and flexible machine location, independent from power source.

Reliable and precise

Water-cooled linear drive for highest micro optics precision.
Higher position accuracy through C-axis mode of work piece spindle.
Direct driven and water-cooled B-axis guarantees better repeatability and higher precision.
The machine’s Integrated Quality control System (IQS) automatically compensates for any inaccuracies caused by tool wear.

Easy to use

Optimized Human Machine Interface (HMI) allows for easy operation.
ReST-interface allows smooth integration into your Manufacturing Execution System.

Close-up of a Satisloh SPM-10 grinding machine processing micro-optics.

Close-up of a Satisloh SPM-10 with optional HS-30 handling system for lens processing in precision optics.

Close-up of a Satisloh SPM-10 grinding machine processing micro lenses in precision optics manufacturing.

Close-up of a Satisloh SPM-10 grinding machine processing micro rod lenses in precision optics.

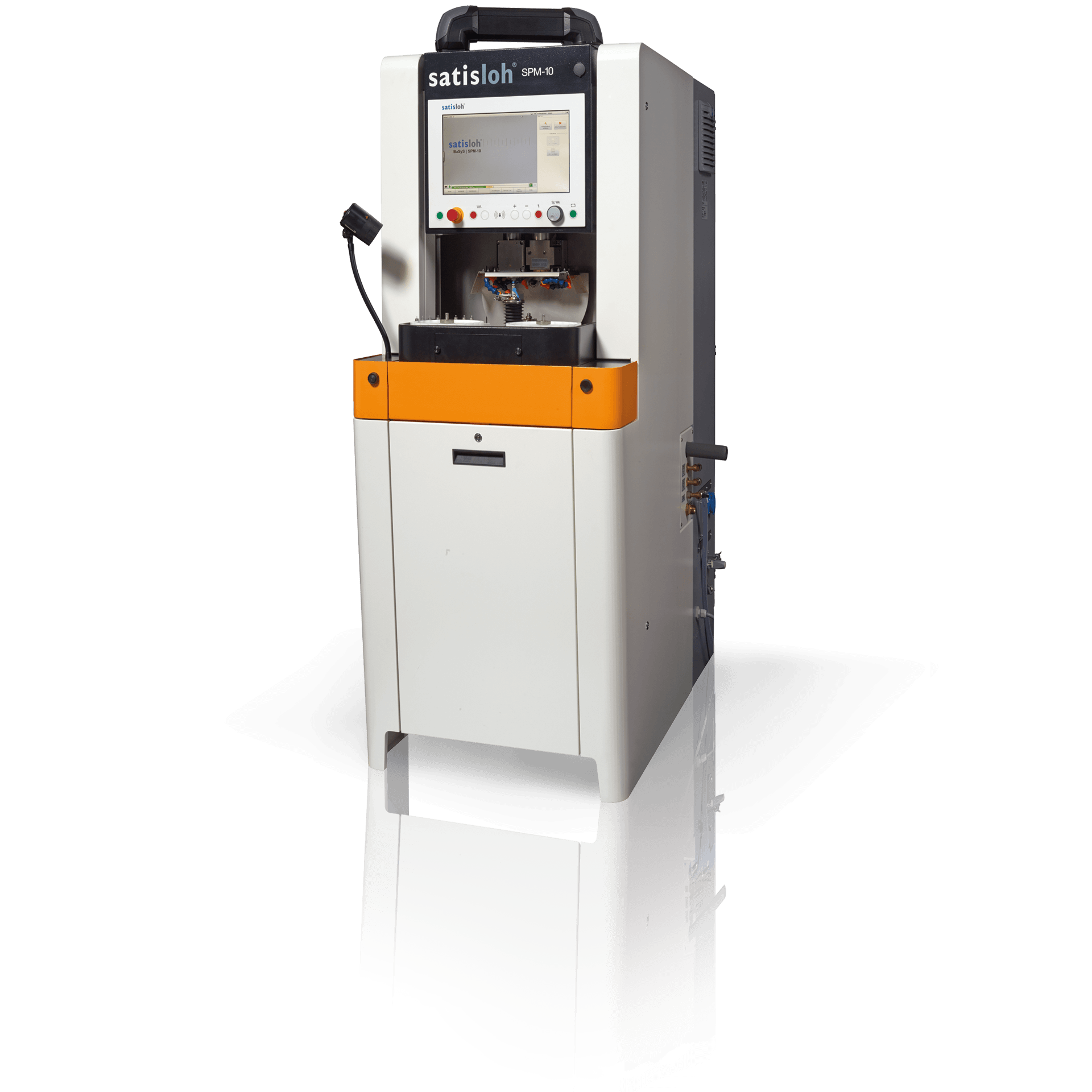

Frontal view of Satisloh SPM-10 grinding machine for micro optics used in precision optics manufacturing.

Video

Tech Specs

Geometries:	Spheres & aspheres
Working range:	Spherical from Ø <1–10 mm Aspherical from Ø 7–12 mm Tool diameter up to 30 mm
Dimensions (wxdxh):	700 x 1300 x 1725 mm / 28 x 51 x 78 inches
Weight:	795 kg / 1752.67 lb without HS-30 handling system

All technical data are subject to change without notice. Verify details with Satisloh.

Documents

SPM-10 Grinder & SPS-10 Polisher (Brochure)

pdf - 1 MB

Download
