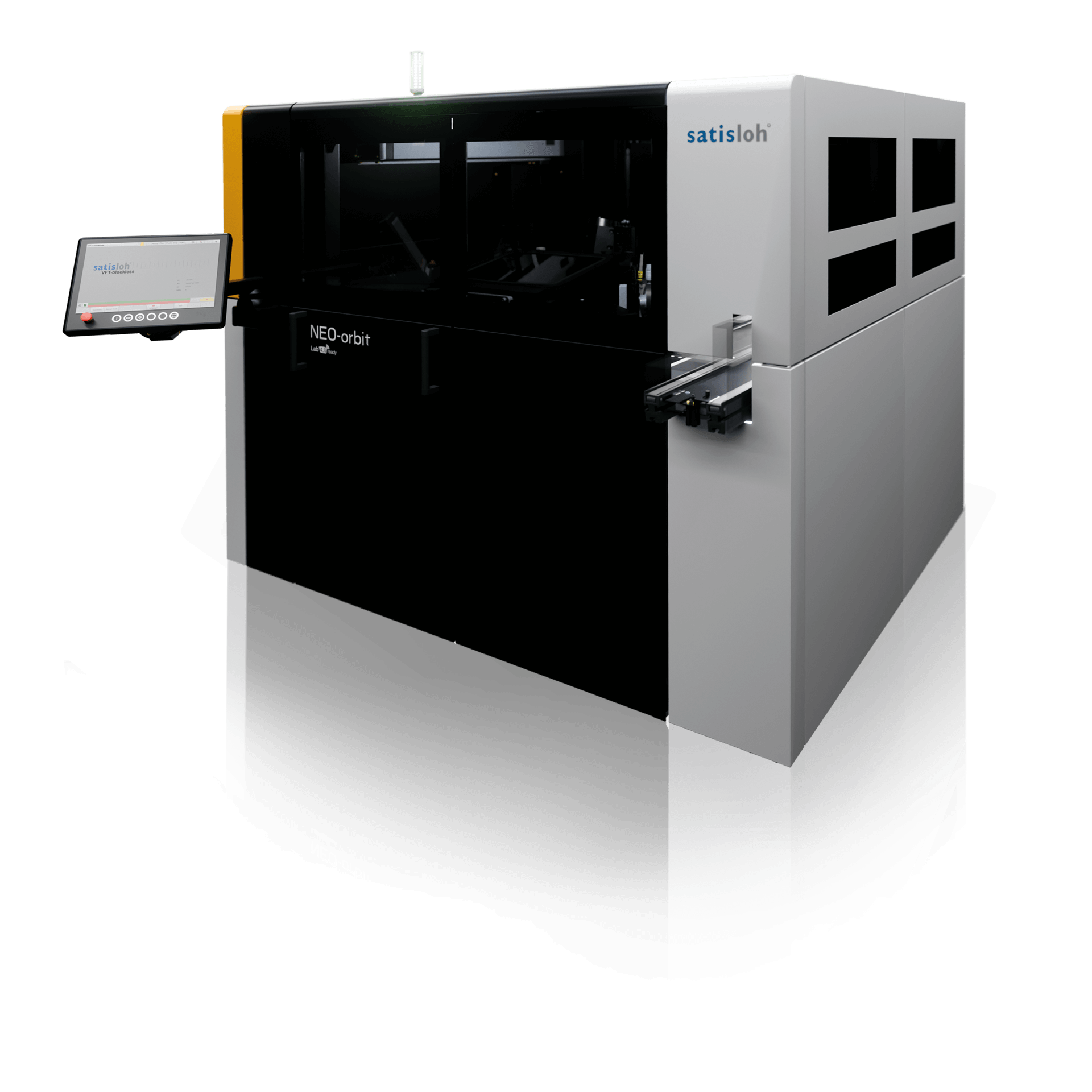

NEO-orbit

Satisloh´s blockless lens generator for ophthalmic and optical Rx labs, engineered to generate freeform backside prescriptions with full surface support - without traditional blocking. By eliminating tape, alloy and/or glue while maintaining micron-level precision, NEO-orbit enables high-speed, high-coverage Rx lens generating across more than 99% of lens types, materials, and prescriptions.

NEO-orbit is the technological foundation of the NEO Blockless Surfacing line.

Unlock the power of blockless technology: Generate virtually any Rx lens without limits.

Engineered from the ground up the NEO-orbit is for true blockless operation. Every core function is optimized to streamline generating, eliminate blocking‑related steps, and maintain exceptional lens quality across the full diameter range - all, while reliably processing more than 99% of lens styles, powers, and materials.

NEO-orbit process steps: Imaging, front curve mapping, spatial blank positioning, cribbing, milling, turning and engraving.

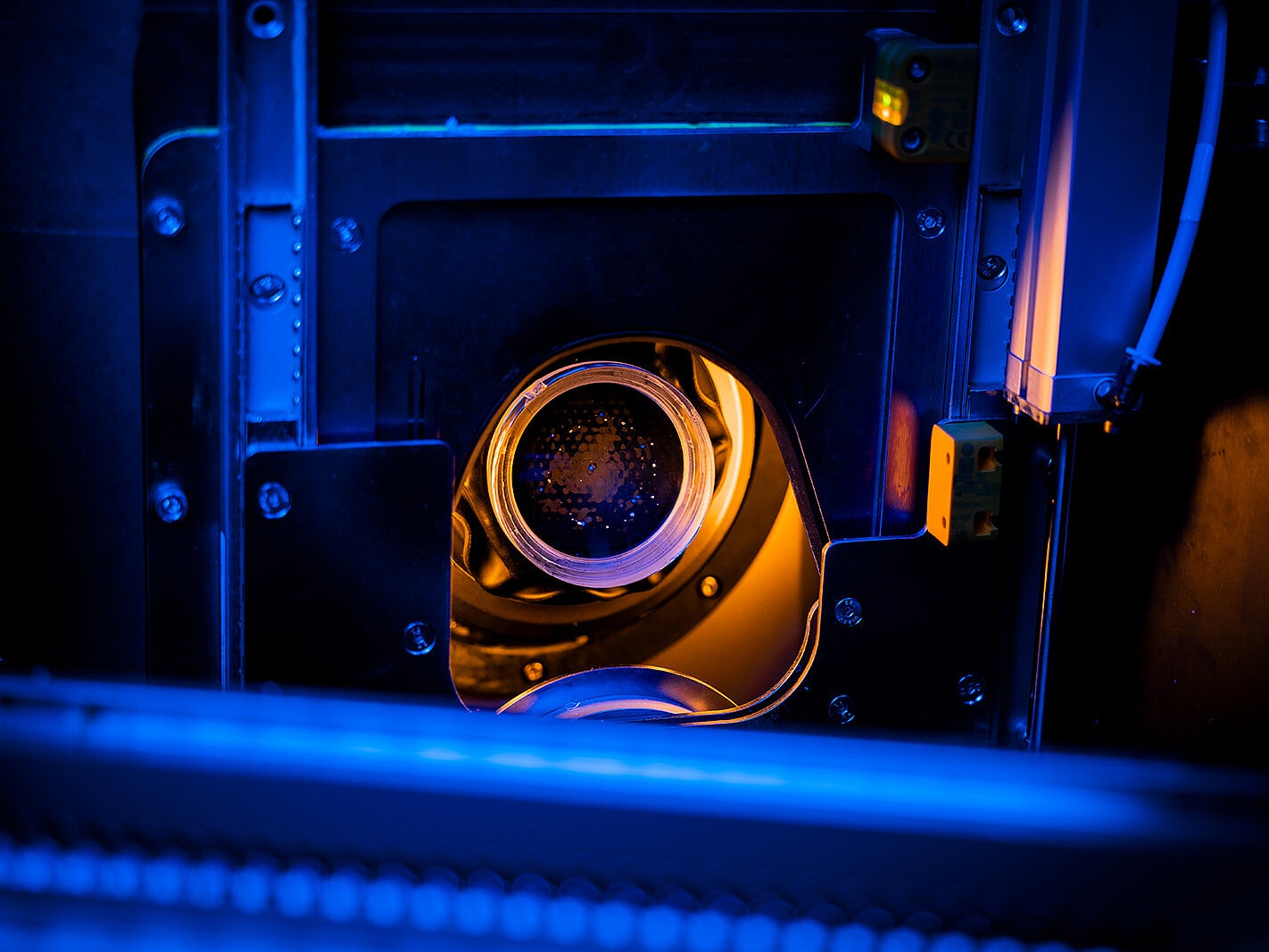

Patented pin-vacuum reception

Full-surface support without alloy, glue, wax, or blocks.
Reliable processing of over 99% of lenses (styles, powers, and materials).
Supports front curve up to 15D.
Rotationally and non-rotationally symmetric front surfaces (spheric & aspheric single vision, bifocals, front side and back side progressive lenses).

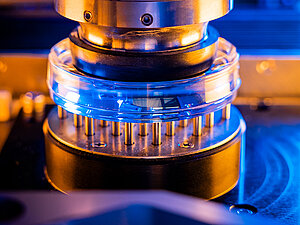

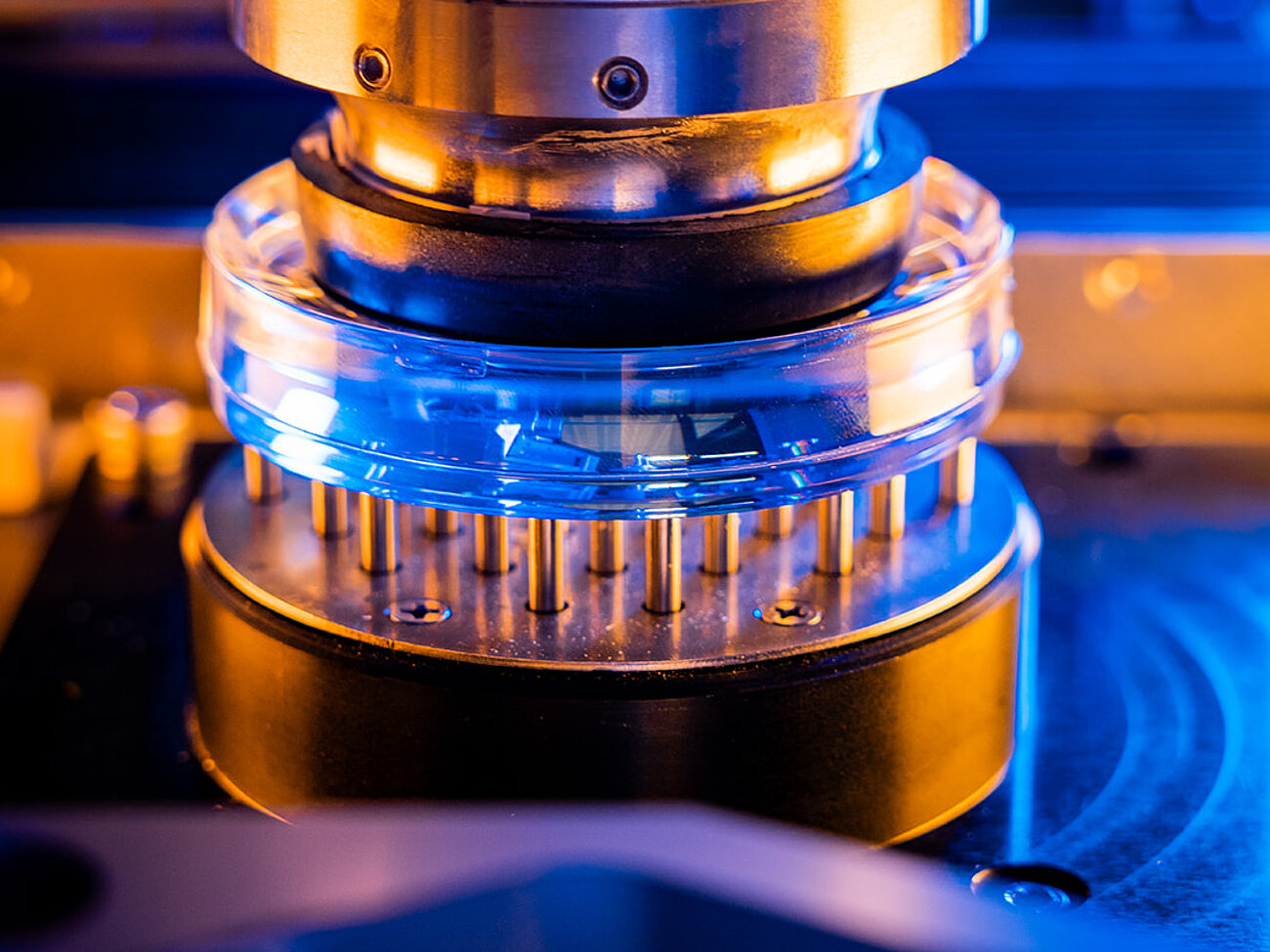

Front-side mapping & spatial blank positioning

Front-side mapping & spatial blank positioning

Integrated front-side blank mapping.

Automatic back-curve recalculation.

Precise front-to-back surface alignment.

Proven ART-based spatial positioning for freeform and non-rotational lenses.

Proven VFT-orbit generating processes

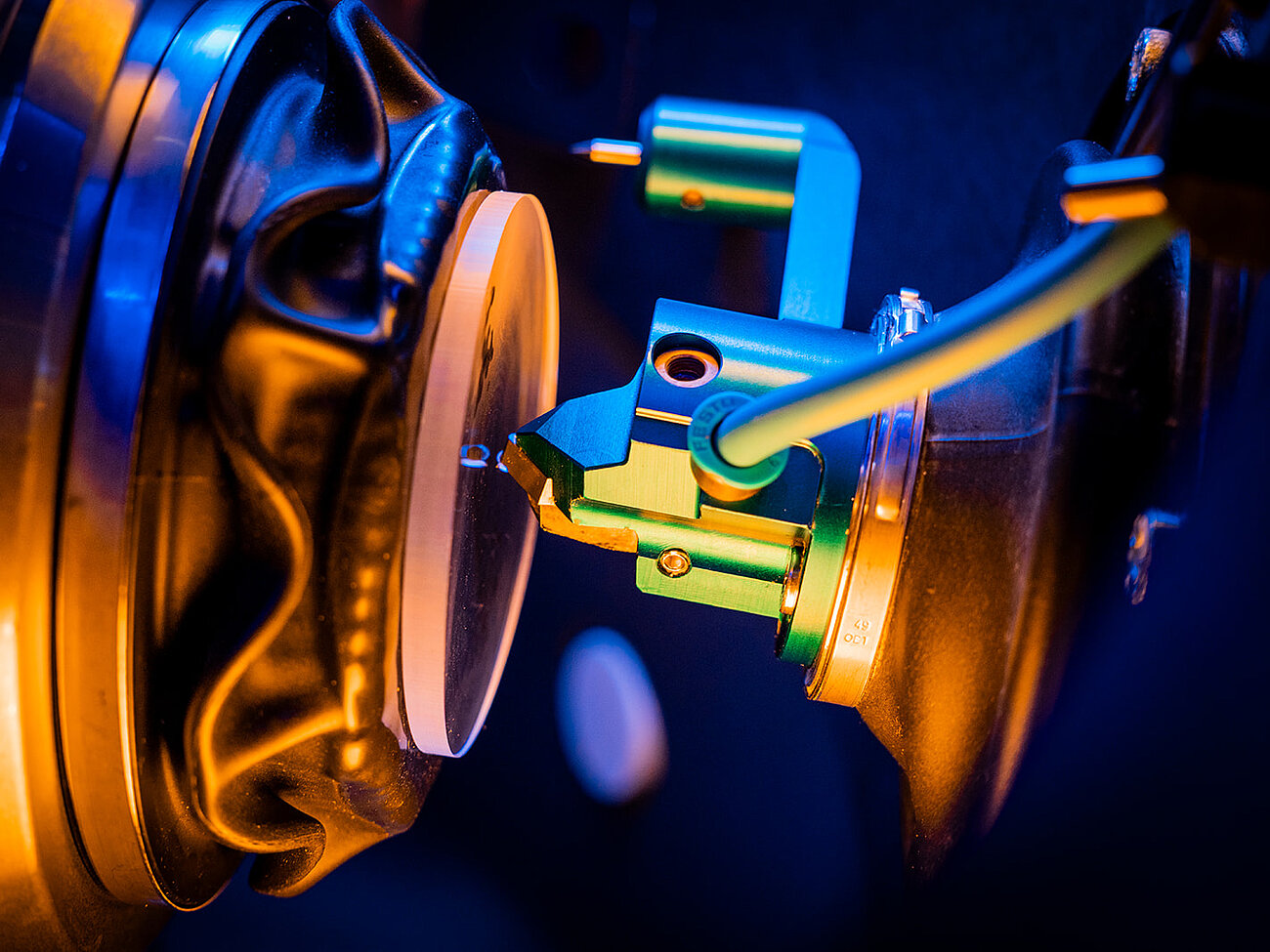

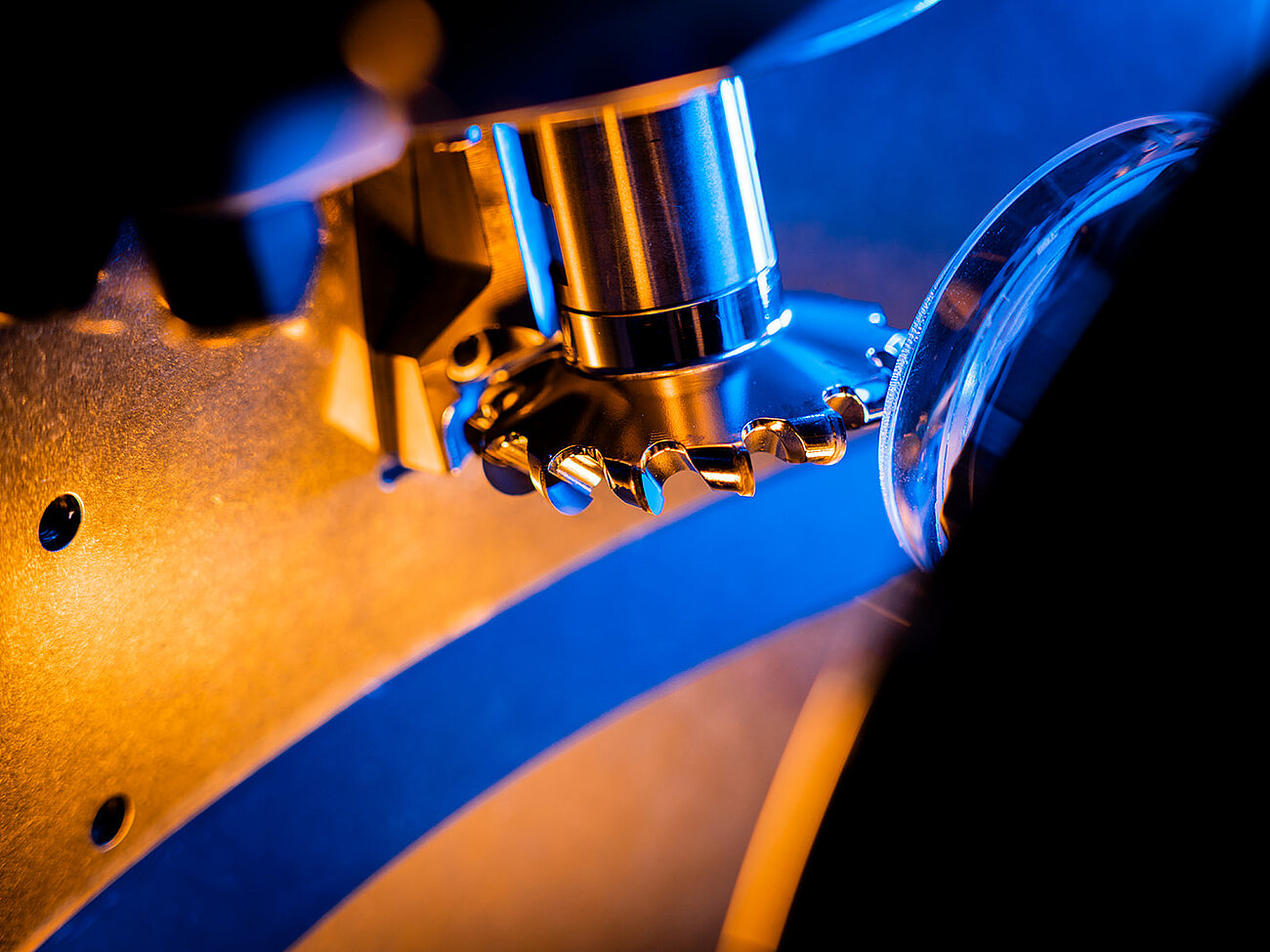

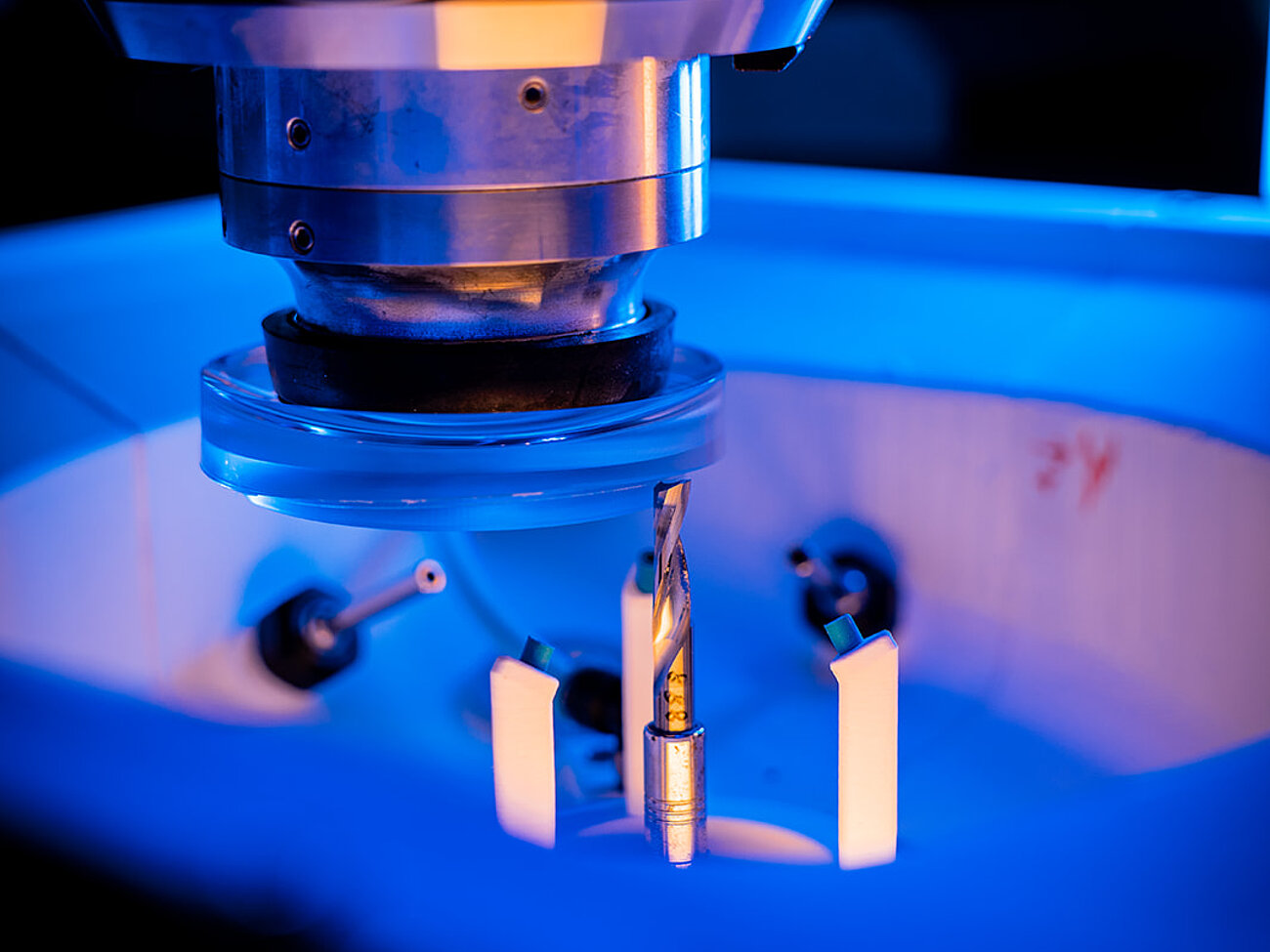

High-speed cribbing, milling and turning with adapted parameters.

Stable surface quality across the full backside curve range (up to 18D).

Consistent results independent of lens material or design.

Tech Specs

Throughput	80 lenses per hour
Lens materials	All organic materials
Dimensions (wxdxh):	2,340 x 2,122 x 2,256 mm \| 92 x 83 x 88 inches
Weight:	4,000 kg \| 8,818 pounds without cooling unit, extractor and empty tank

Features & Options

Fast tool
2nd Fast tool
Smart B-axis
Full Auto-calibration including lens depot
MES-360 Lite (Machine Reports)
MES-360 Machine Monitoring (Dashboard & reports) (optional)

Laser Engraving - high speed and exceptional marking quality, fully integrated into your system. (optional)

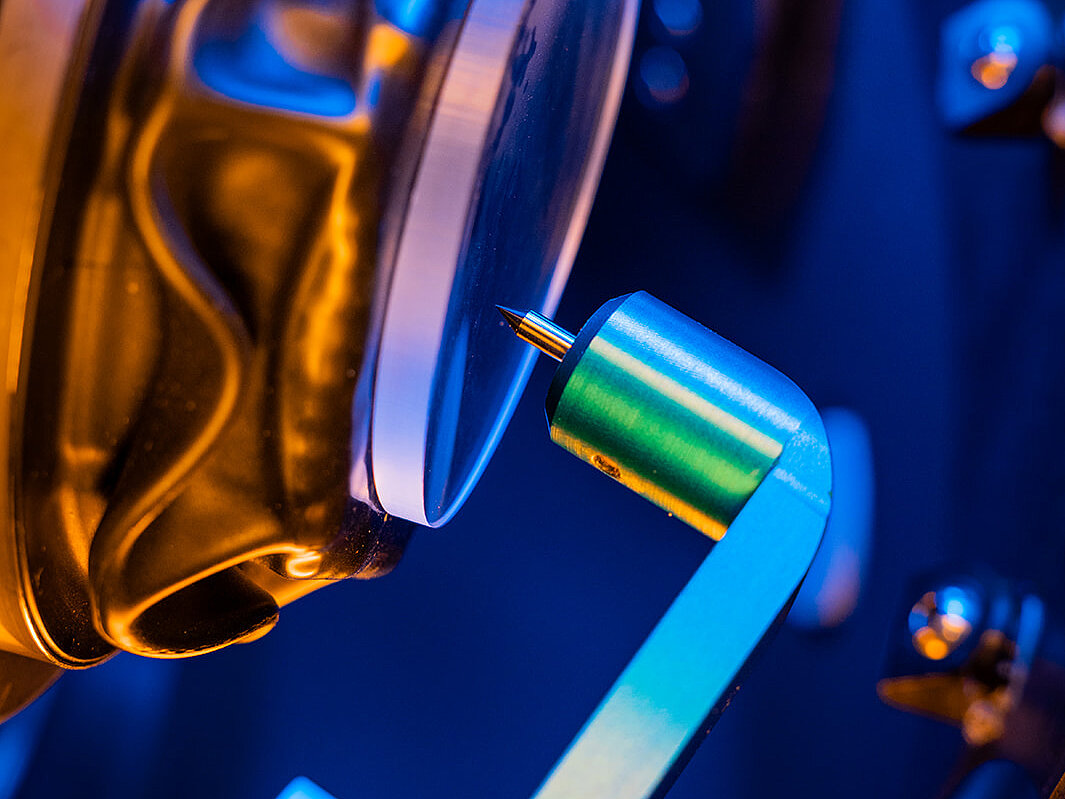

Mechanical engraving - a robust, proven engraving option for consistent engraving results. (optional)

Documents

NEO-orbit & NEO-flex blockless surfacing (Brochure)

pdf - 579 KB

Download

Person holding a tablet displaying charts and graphs from a production performance report.

MES-360 Lite included.

Your introduction to Industry 4.0 with MES-360 Lite
Increasing transparency and visibility of your equipment performance is key to optimizing your production and reducing costs. MES-360 Lite provides daily reports using pre-established KPI to track.
