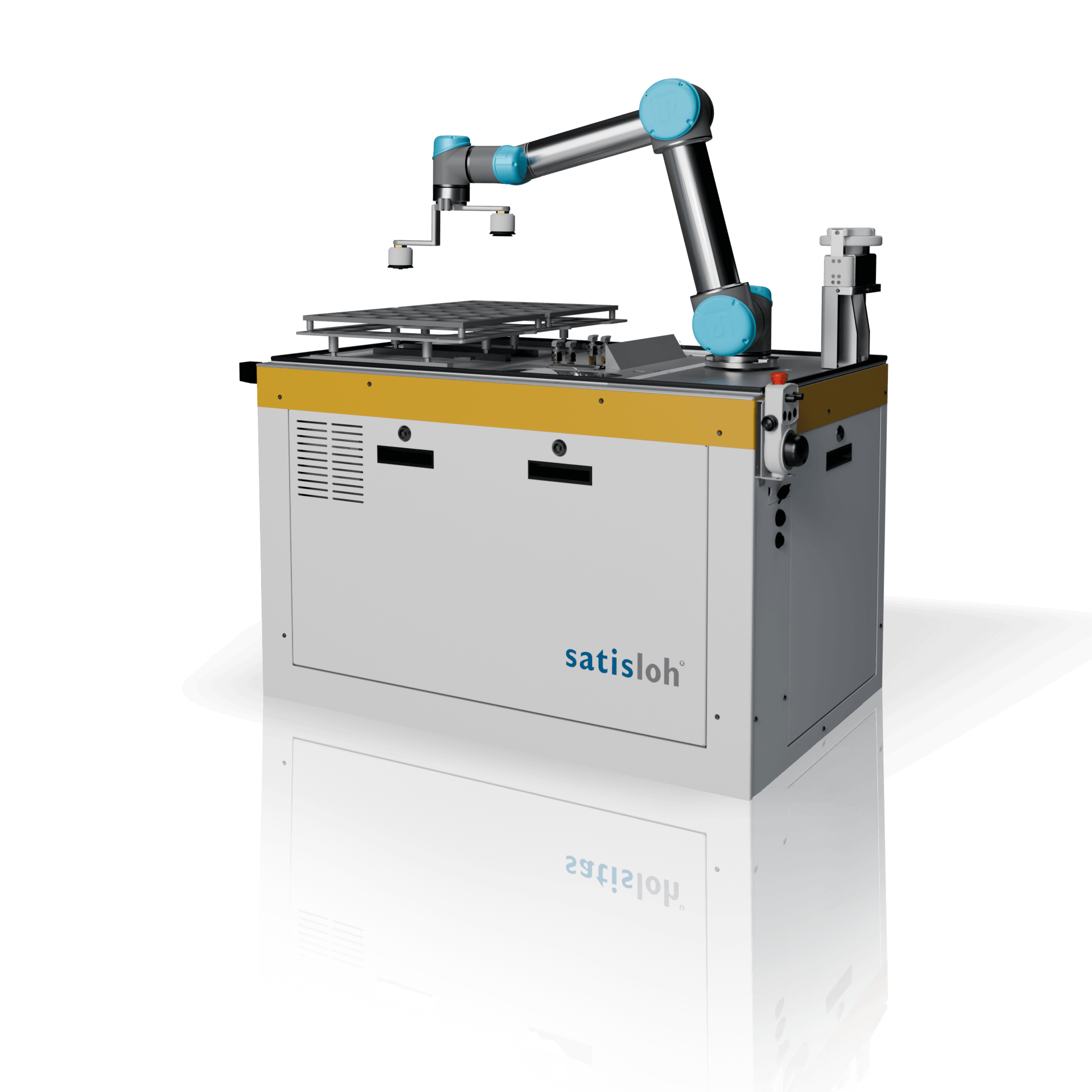

HS-200

Efficient & mobile automated workpiece handling

The HS-200 is compatible with most Satisloh grinding, centering & polishing machines: SPM/SPS-200, SPM/SPS-125, SPM/SPS-50, PR-150 and C-300. Its design, an easy docking system with different suction cups and clamping options, facilitates and simplifies its use with more than one machine and different optical workpieces.


Efficient and flexible

• Handles lenses Ø 15-80 mm and up to 50 mm lens thickness.
• Compatible with most Satisloh grinding, centering, and polishing machines.
• Mobile design allows flexible use where needed.
• Modular, upgradeable design with optional washing and turning stations and double vacuum suction cup.
• Use 2 trays for highest productivity and minimized reloading – up to 408 lenses per loading cycle.
• Fully automated loading with at least 250 mm/sec increases your productivity.


Reliable

• Repeatability of +/- 0.1 mm guarantees smooth operation.
• Very high lens handling sensitivity for less damage as with manual loading.


Easy to use

• Easy docking system saves installation time.
• No changeover needed - can remain at machine during manual loading.
