High-volume AR & mirror coater

Capacity: up to 209 lenses/batch Ø70 mm with ringless full dome.
Multiple lens coating process applications: Anti-Reflective; mirror; topcoat; & in-chamber tinting on organic & mineral glass lenses.
Deposition of multiple coating process features in one single run.
Larger Meissner trap with intelligent, movable shield system optimizes pumping speed and protects against surface contamination.
Portable degassing system shareble with other coaters, reduces chamber degassing & maintenance time, and shortens processing cycles.
Simplified electron-beam emitter for easy maintenance & increased reliability.
Ion-beam assisted deposition for best layer adhesion and hardness.
Special substrade gradient & planetary holders (available upon request).

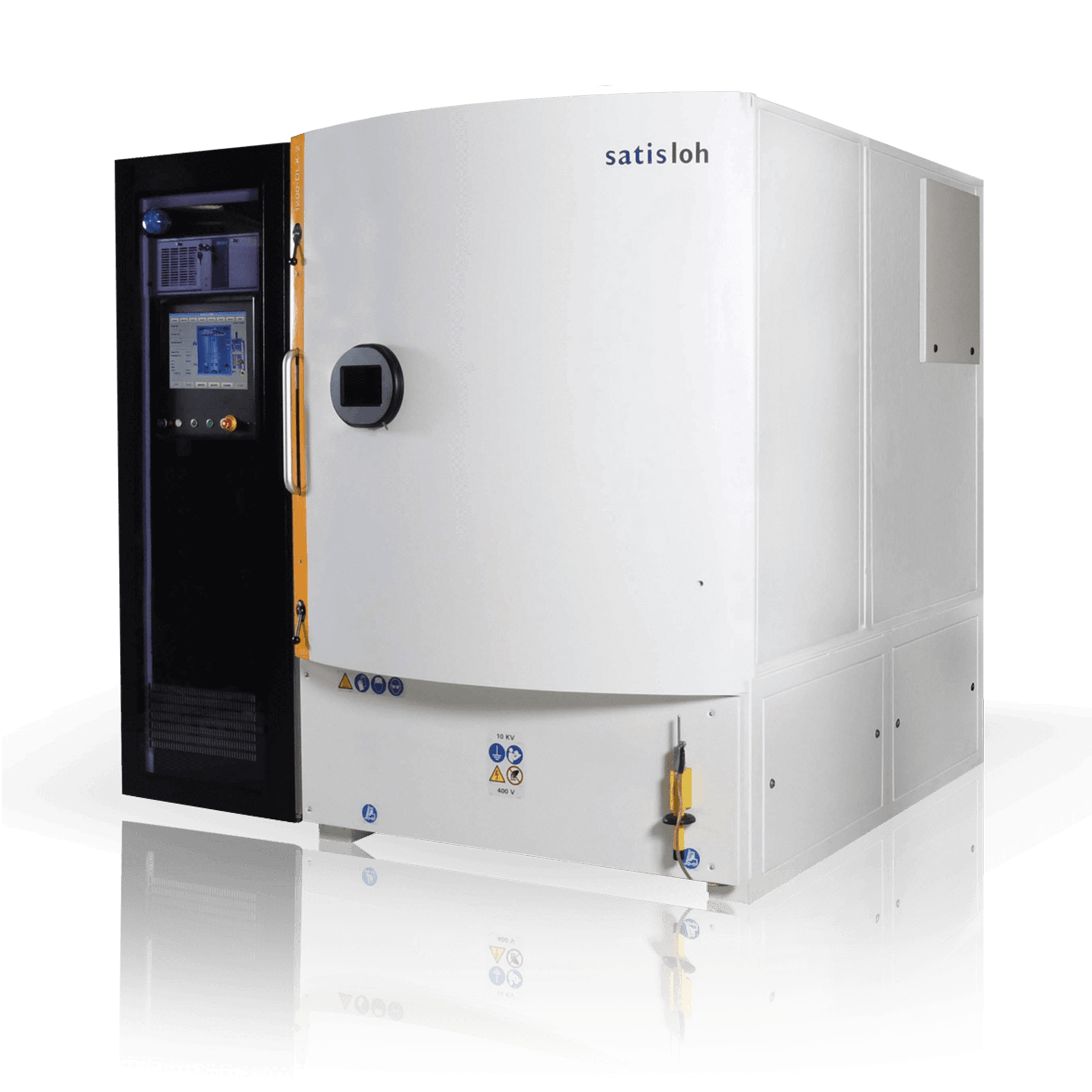

Industrial semiconductor processing chamber with control panel and enclosed design.

Satisloh 1200-DLX-2 Vacuum Lens Coater Intelligent Shields

Interior of semiconductor processing equipment showing a circular wafer holder with multiple slots.

nterior view of industrial semiconductor equipment with metal pipes and round processing chambers.

Processes

Coating processes for Rx lenses

Top coating - Hydrophobic, Super Hydrophobic & Super Hydro/Oleophobic
AR coating - Ultimate, Premium, Performance, Classic, Multicote X
Mirror coating - Spectraflex X
Specialized coating - Protect-Blue, Protect UV, Protect Complete & Protect High Contrast
In-chamber tinting - Various colors & absorption levels

1200-DLX-2 vacuum box coater can be customized to meet your product, process & production requirements.

Perfectly matched Satisloh ophthalmic lens coating processes, consumables, and box coaters guarantee best coating performance.

Tech Specs

6-sector dome lens capacity: (ringless sector on request)	Ø 65 mm up to 198 lenses/batch Ø 70 mm up to 168 lenses/batch Ø 75 mm up to 150 lenses/batch Ø 80 mm up to 126 lenses/batch
Ringless full dome lens capacity:	Ø 65 mm up to 245 lenses/batch Ø 70 mm up to 209 lenses/batch Ø 75 mm up to 174 lenses/batch Ø 80 mm up to 156 lenses/batch
Flip over lens capacity:	Ø 65 mm up to 144 lenses/batch Ø 70 mm up to 120 lenses/batch Ø 75 mm up to 108 lenses/batch Ø 80 mm up to 96 lenses/batch
3-sector dome (ringless) & Planetary cylinders lens capacity:	Available upon request
Lens material:	All organic materials and mineral glass
Dimensions (wxdxh):	2171 x 3145 x 2440 mm / 85.5 x 123.8 x 96 inches
Weight:	3637 kg / 8018 lb

All technical data subject to change without notice. Verify details with Satisloh.
