1200-TLX

Experience unmatched productivity and precision with the 1200-TLX vacuum box coater. Designed for medium to large labs, this powerful box coater features a revolutionary sector dome system with slim rings and energy-efficient turbo pumps. Combining innovative design with sustainable performance, the 1200-TLX delivers premium lens coatings with exceptional reliability and efficiency.

Contact me

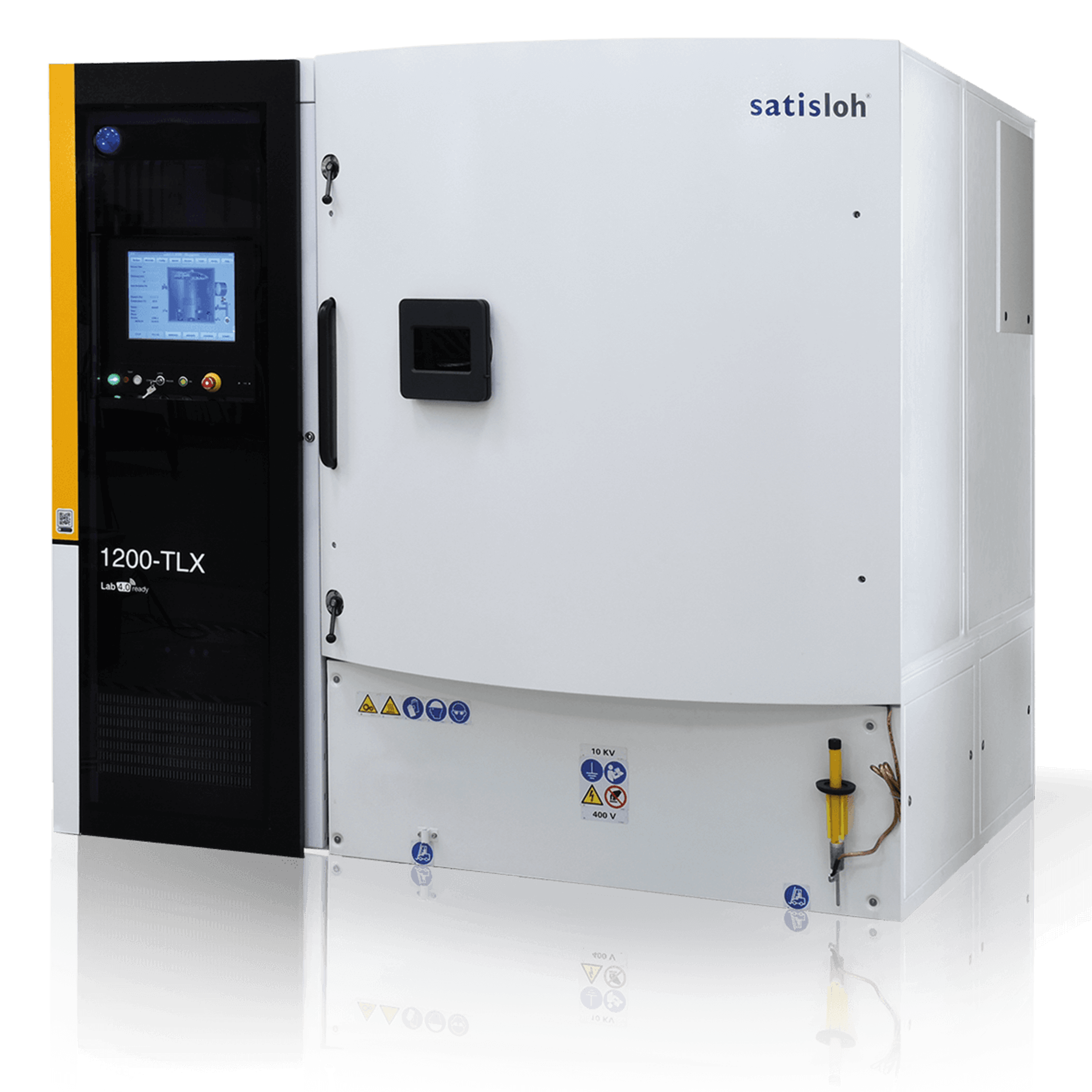

Industrial semiconductor processing chamber with side control panel and integrated display screen.

From high-volume AR coatings to advanced mirror finishes – Revolutionize your Lens Coating with the 1200-TLX

The Satisloh 1200-TLX is the next generation of high-capacity, energy-efficient AR coaters, tailored for medium and large labs producing up to 1,000 lenses daily. Its innovative sector dome design and magnetically levitated turbo pumps ensure high productivity, operational efficiency, and consistent coating quality.

The magnetically levitated pumps, free of mechanical bearings, eliminate friction and wear, leading to longer pump life, reduced maintenance, and minimized downtime. With faster pump-down times and quicker cycle turnovers, these pumps enhance productivity and keep your production line running smoothly.

MES-360 Lite Software for basic data analysis and preconfigured KPI report (PDF) comes with the machine. Labs can upgrade to the full version of MES-360, to trace machine performance, coating batching and track breakage.

Exceptional lens capacity: Up to 209 lenses per batch with a ringless full dome.
Faster turnaround: Advanced turbo-molecular pumps reduce process times and boost daily output.
Superior flexibility: The sector dome accommodates standard sectors with rings and ringless options with slim rings, enabling diverse production needs in one cycle.
Low maintenance: Oil-free turbo pumps minimize wear, downtime, and operating costs.
Eco-conscious design: Low energy consumption and optional energy monitoring underscore our commitment to sustainability.

Close-up of industrial semiconductor equipment with metallic piping, connectors, and processing chamber.

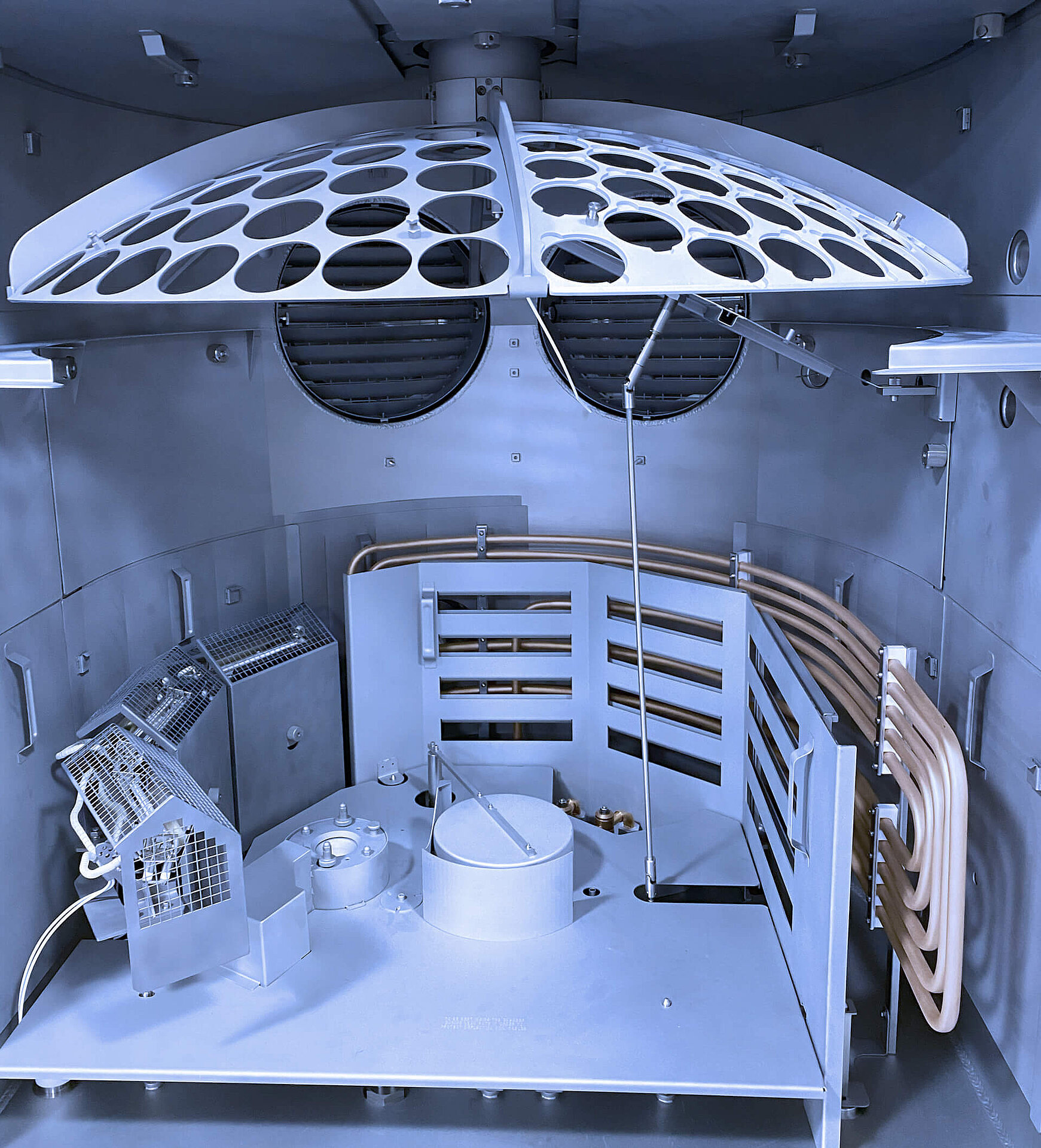

Interior of semiconductor processing chamber with circular wafer holder and multiple slots for wafers.

Set of six circular metal components with different spiral and ring-shaped designs, used in semiconductor equipment.

Highlights

Exceptional Capacity and Efficiency

–

Capable of processing up to 209 lenses per batch with its ringless full dome, the 1200-TLX ensures the lowest cost per lens per hour, maximizing your productivity and minimizing operational costs.

Reliable, Low-Maintenance Performance

–

With two magnetically levitated turbo pumps, the 1200-TLX ensures clean, oil-free vacuum operation, essential for high-quality coatings. The contact-free design reduces wear, keeping maintenance low and production interruptions minimal.

Enhanced Productivity

–

Equipped with two high-speed, magnetically levitated turbo-molecular pumps, this machine achieves faster pumping and shorter process times, accelerating cycle turnover and boosting daily output.

Streamlined Cleaning

–

The portable degassing system simplifies chamber cleaning, enhancing operational convenience and saving valuable time between coating cycles.

Advanced Dome Flexibility

–

The revolutionary sector dome design accommodates both standard sectors with rings and ringless sectors with slim rings simultaneously. This unique configuration increases production capacity and offers the flexibility to handle varied job types in a single run.

Intelligent Monitoring with MES-360 Lite

–

Track machine utilization, production throughput, and error metrics with daily reports generated by the preinstalled MES-360 Lite. For more advanced tracking, the system can be upgraded to the full MES-360 package as your lab’s needs evolve.

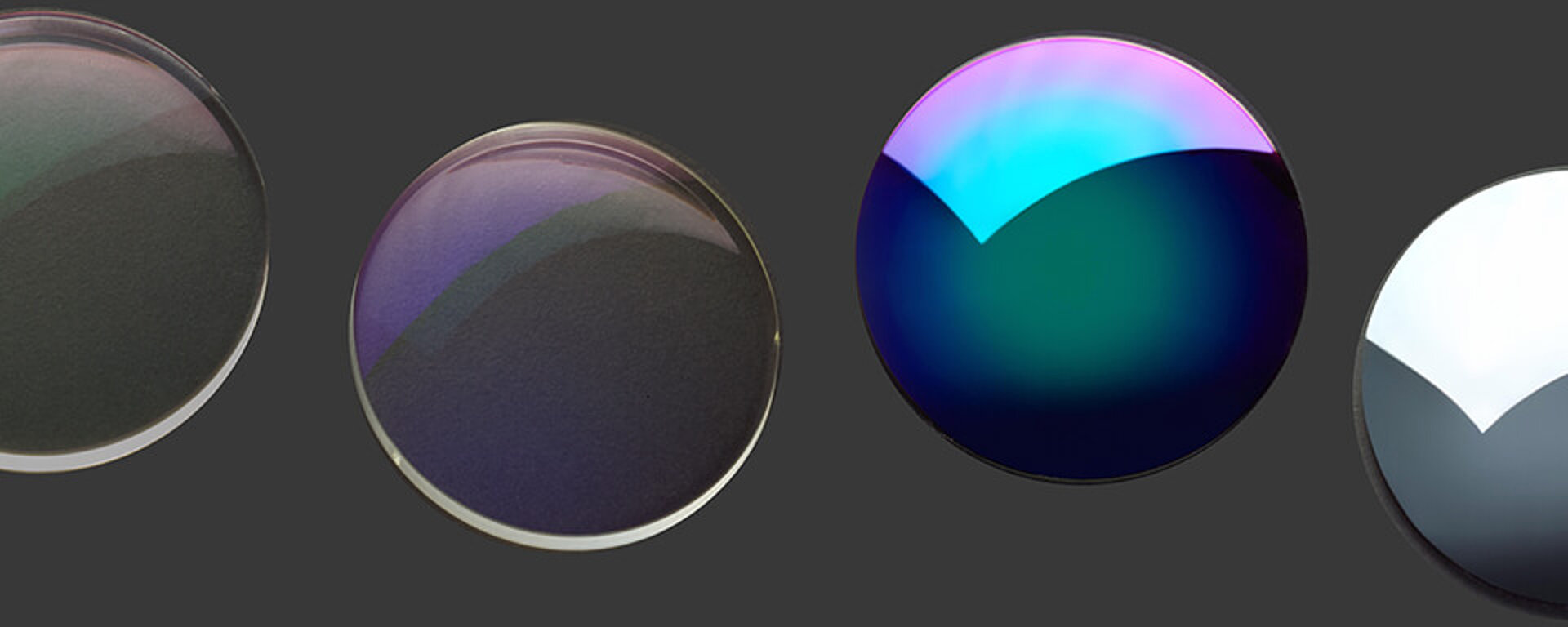

Row of optical lenses with different reflective coatings in various colors.

Processes for Rx lenses

Top coating - Hydrophobic, Super Hydrophobic & Super Hydro/Oleophobic
Antistatic Broadband AR - Ultimate-2, Premium, Protect-Blue, Protect UV, Protect Complete
Broadband AR - Performance
Dichroic mirror - Spectraflex (white / silver, violet, blue, green, jade, gold, orange, red,infrared, others on request)
Metallic Mirror - silver, blue, gold, others on request

1200-TLX vacuum box coater, can be customized to meet your product, process and production requirements.
Perfectly matched Satisloh ophthalmic lens coating processes, consumables, and box coaters guarantee best coating performance.

Learn more

Tech Specs

Capacity:	For lens Ø70 mm up to 209 lenses (ringless full dome) For Lens Ø70 mm up to 192 lenses (6 ringless sector dome) For lens Ø70 mm up to 168 lenses (6 sector dome)
Materials:	All organic lens materials: Polycarbonate, Trivex, Acrylic, CR39 and High Index up to 1.74. Mineral (all indexes) Front side coated lenses => HC, HC + AR, Transitions, Polarized
Dimensions (wxdxh):	2285* x 2978** x 2689* mm / 90* x 117** x 106* inches
Weight:	3637 kg / 8018 lb

*with positioning wheels; ** door closed
All technical data subject to change without notice. Verify details with Satisloh.

Options

Tooling solutions
- 6 sector dome (standard with rings, ringless with slim rings, ringless)
- Batch with mixed sectors
- Flip over
- Gradient/Bi-gradient
- Planetary holders
Portable degassing system
Movable distribution mask for ring-less full dome only
Ultra-fast venting
STEP maintenance program ensures your Satisloh coater will perform at the highest quality level for years to come

Documents

1200-TLX Vacuum box coater (Brochure)

pdf - 668 KB

Download

Person holding a tablet displaying charts and graphs from a production performance report.

Purchase a 1200-TLX and get a

MES-360 Lite for free.

Your introduction to Industry 4.0 with MES-360 Lite
Increasing transparency and visibility of your equipment performance is key to optimizing your production and reducing costs. MES-360 Lite provides daily reports using pre-established KPI to track.
