Processing of complex geometries

Flexible kinematics, 5 CNC controlled axes with Bosch Rexroth MTX controller, powerful spindles and many pre-defined processes make this machine the best choice for producing complex and accurate parts.

Prisms can be produced in single or batch mode. Using the front-loaded tool changer it is possible to run processes with many different steps that require different tools, fully automatic without operator interference. In combination with CAD/CAM-interface, complex work-piece geometries can be generated.

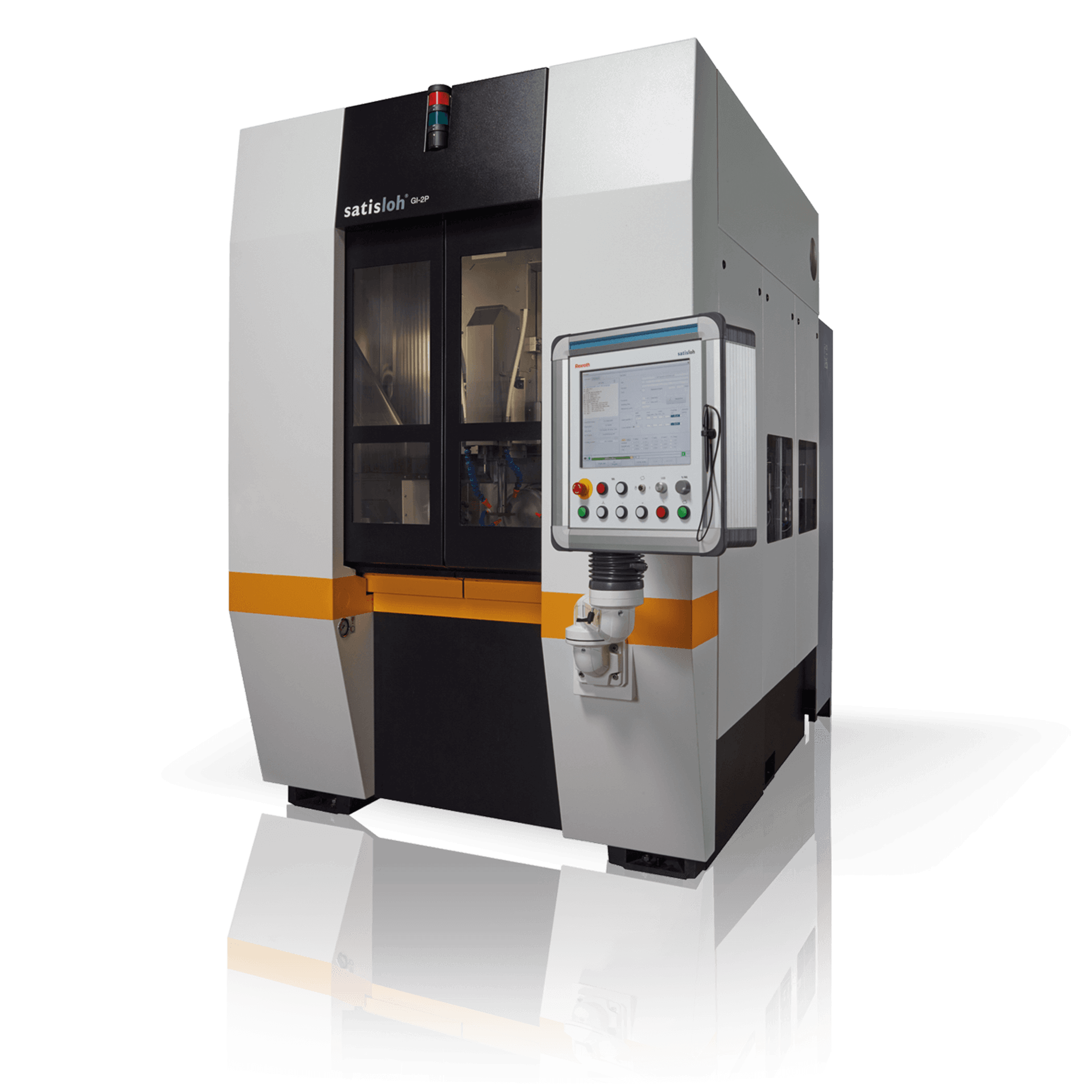

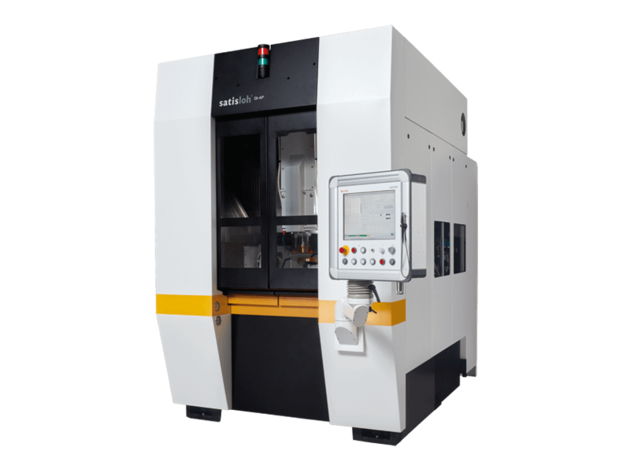

Frontal view of Satisloh GI grinding machine used in precision optics manufacturing.

Close-up of a Satisloh GI tool changer used in precision optics manufacturing.

Close-up of a Satisloh GI grinding disc tool used in precision optics manufacturing.

Close-up of a Satisloh GI ball segment tool used in precision optics grinding.

Highlights

Flexible and Efficient

Universal: grinding and polishing of spheres, aspheres, prisms and other complex shapes in different modes.
Tailor-made machine versions meeting your specific demands.
Processes various hard and brittle materials
Up to two tool spindles mean faster processing and shorter cycle times.
CAMPos: integrated post processing for CAD/CAM applications.
Reduced setup time with integrated measuring probe for center thickness and workpiece geometry.
Integrated dressing process for polishing tools saves time

Reliable

High stability and low vibration through proven polymer concrete machine base.
Direct driven tool spindles for highly dynamic axis movements.
Stable and repeatable form accuracy through cooled axes and drives.
3D simulation mode for high process safety.
Integrated quality assurance system (IQS) for highest achievable surface quality in spherical processing.

Easy to use

Front-loaded tool changer manages 10 tool changing slots for fully automatic processes that require different tools.
Easy job setup and editing via guided software interface BaSyS.

Tech Specs

Geometries:	Spheres, aspheres, plano optics, cylinders, prisms, domes, rods & other complex shapes in brittle hard material.
Working range:	Diameter up to 500 mm, limits are varying on process type, tool/workpiece constellation & number of machine spindles.
Dimensions (wxdxh):	1670 x 2660 x 2530 mm / 66 x 105 x 100 inches
Weight:	6500 kg / 14330 lb (depending on configuration)

All technical data are subject to change without notice. Verify details with Satisloh.
