Hard Coat Processes

Excellent performance and durability of ophthalmic lenses starts with leading scratch resistance technology. Satisloh offers thermal dip coating and UV spin coating processes for hard scratch-resistance and highest anti-reflective adhesion on ophthalmic lenses.

  • UV Spin Coating - less complex production and economical investment with the highest process speed. Can be fully automated and labs can achieve extremely high scratch-resistance.
  • Thermal Dip Coating - coats both sides of uncoated lenses and provides maximum scratch resistance and uniform performance on front and back. This is the most economical solution for high volume labs that can coat in batches.

Contact me

Semiconductor wafers suspended by metal holders above a processing bath in a cleanroom environment.

Overview

*substrate can be tinted prior to hard coating. ** volume dependent.
  UV Spin coating - All solids UV Spin coating - Solvent based Thermal Dip coating
Scratch resistance ⬤ ⬤ 〇 〇 〇 ⬤ ⬤ ⬤ 〇 〇 ⬤ ⬤ ⬤ ⬤ ⬤
Tintability ⬤ ⬤ ⬤ ⬤ 〇 ⬤ 〇 〇 〇 〇 ⬤ 〇 〇 〇 〇*
Index match ⬤ 〇 〇 〇 〇 ⬤ 〇 〇 〇 〇 ⬤ ⬤ ⬤ ⬤ 〇
Once-side Coating capability Yes Yes No
Pre-AR Coated lens capability Yes Yes No
Cycle time 20-60 seconds 45-60 seconds 2-3 hours
Process type Single piece flow Single piece flow Batch
Lacquer cost $$ $$$ $-$$$$**
Investment (facility & equipment) $ $ $$$$
Mountain lake landscape with overlaid circular diagram featuring mathematical symbols and axes.
Sunset view over the ocean with distant mountains, overlaid by a circular diagram with mathematical symbols.
Night cityscape with light trails from traffic under a bridge, overlaid with a circular diagram and mathematical symbols.

Related products

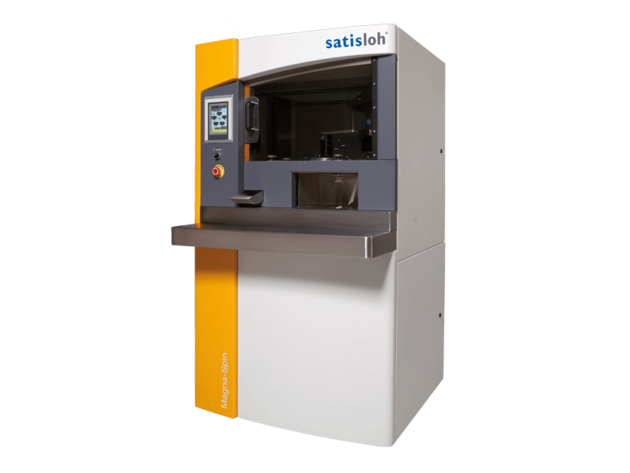

Industrial machine with control display and workspace, used for lens or optical manufacturing processes.

Magna-Spin

Semi-automatic spin hard coater, cleans, coats & cures the back-side of ophthalmic lenses for scratch resistance. Processes up to 100 lenses/hour.

Learn more

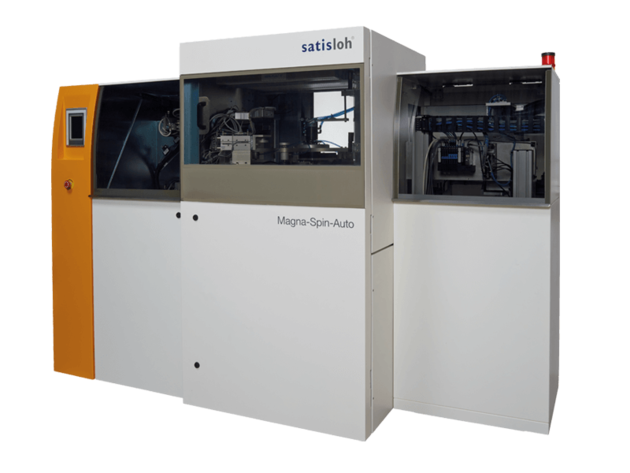

Industrial machine with multiple compartments and control panels, used for optical lens production.

Magna-Spin-Auto

Automatic spin hard coater, integrates perfectly with ART-line. It cleans, coats & cures the back-side of ophthalmic lenses. Processes up to 120 lenses/hour.

Learn more

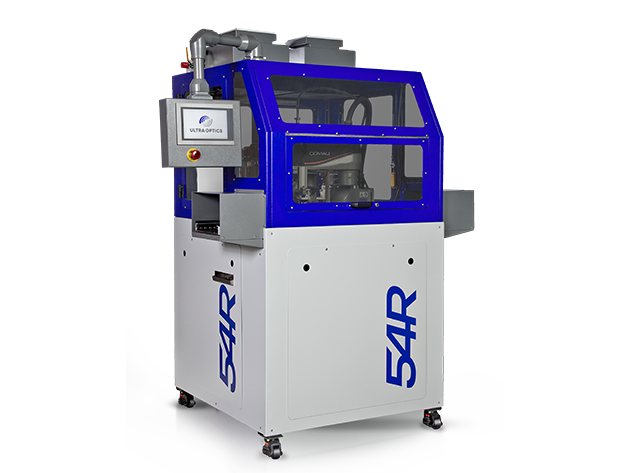

Compact industrial machine with blue frame and touchscreen control panel, used in lens production.

54R

by Ultra Optics
Ultra Optics is part of the Satisloh Group, specializing in high-performance spin coating solutions for the ophthalmic industry.

Fully automated, compact Spin Coating machine processing 160+ lenses/hour.

Learn more at Ultra Optics

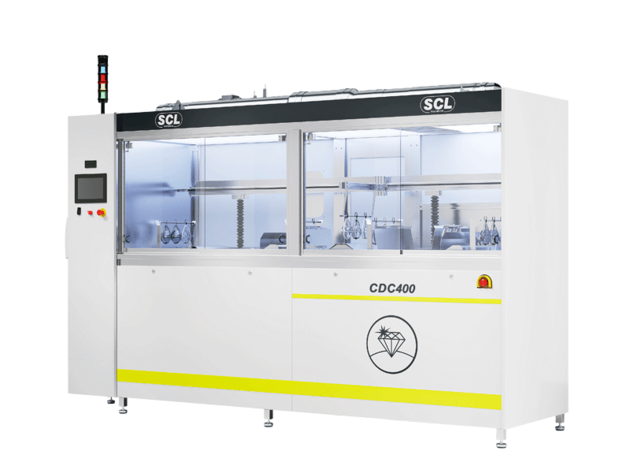

Satisloh SCL CDC 400 Hard Coating machine Preview image

CDC 400

Compact Hard Coating machine for small-to-medium sized labs. Processes up to 60 lenses/hour.

Learn more

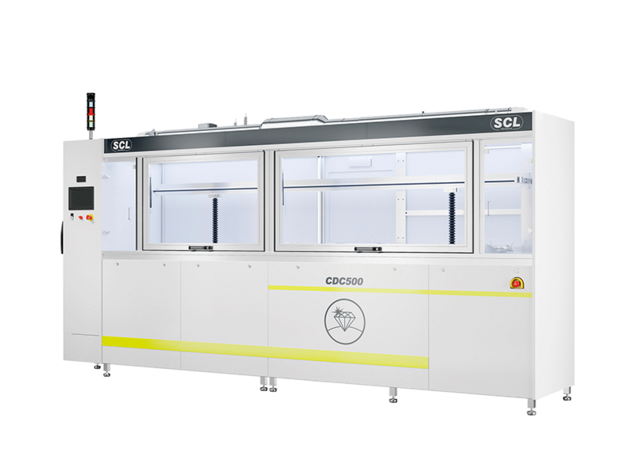

Satisloh SCL CDC 500 Hard Coating machine Preview image

CDC 500

Automated Hard Coating machine for small-to-medium sized labs. Processes up to 80 lenses/hour.

Learn more
Satisloh SCL CDC 1000 Hard Coating machine Preview image

CDC 1000

Hard Coating Machine for medium-to-large sized labs with manual loading/unloading. Processes up to 150 lenses/hour.

Learn more
Satisloh SCL CDS 1000 Hard Coating machine Preview image

CDS 1000

Fully automated Hard Coating Machine for medium-to-large sized labs. Processes up to 192 lenses/hour.

Learn more

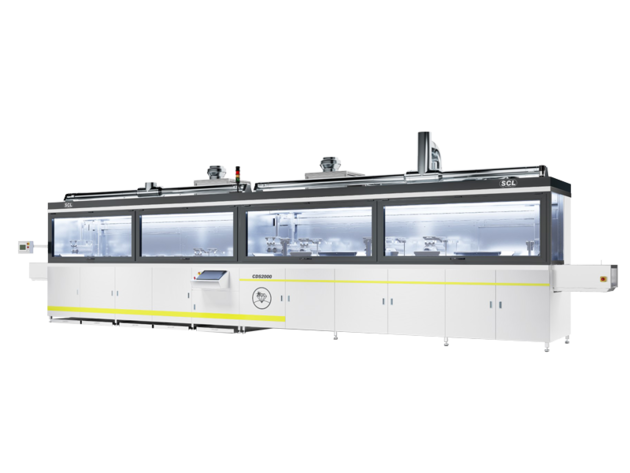

Satisloh SCL CDS 2000 Hard Coating machine Preview image

CDS 2000

Fully automated Hard Coating Machine for high-volume labs. Processes up to 384 lenses/hour. With 2 separate zones for cleaning and hard coating.

Learn more
Semiconductor wafers suspended by metal holders above a processing bath in a cleanroom environment.

Hard Coat Processes

Durable hard coat processes for thermal dip or UV spin coating technologies make lenses more durable and last longer.

Learn more
