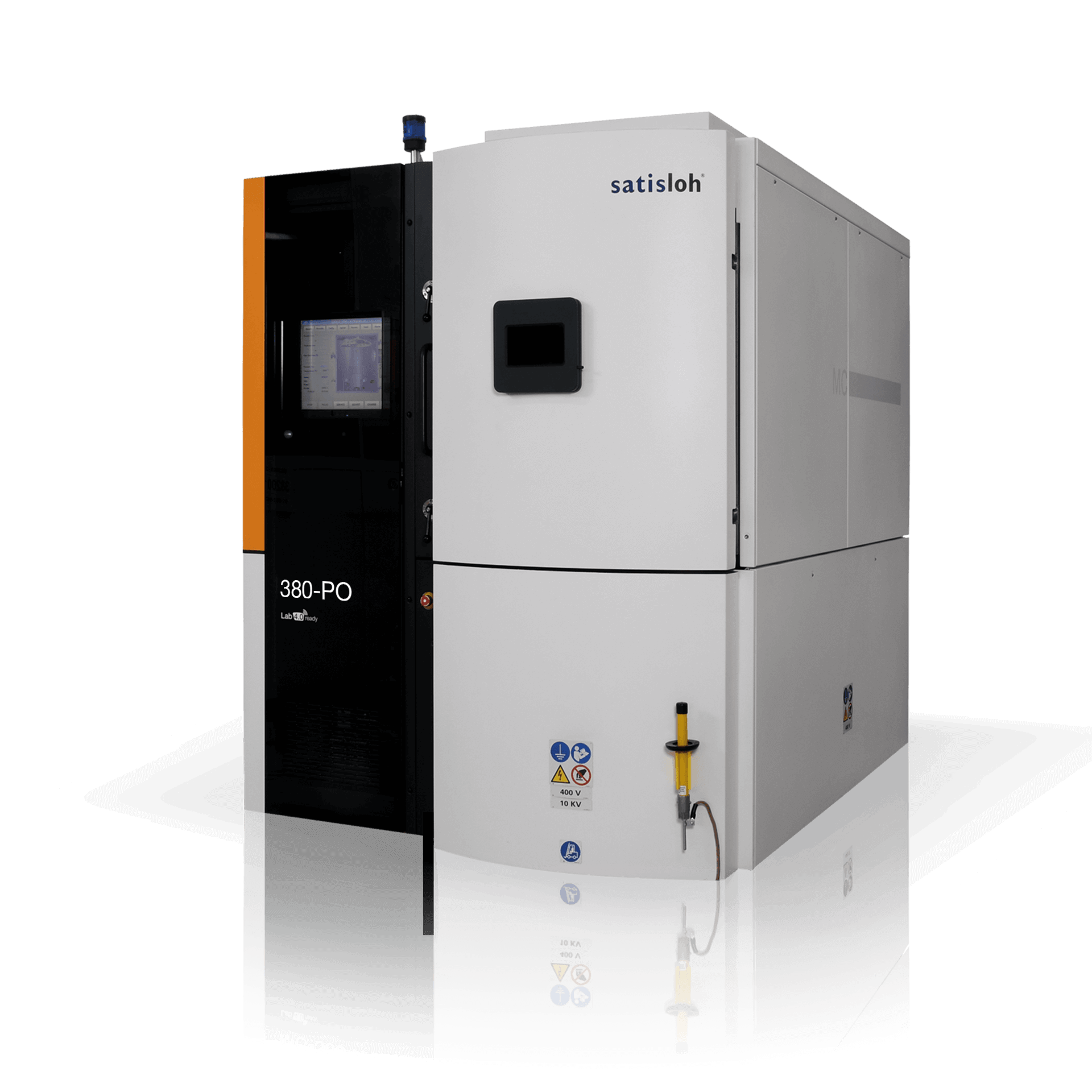

Top of the class for mid to small-sized optics production

The 380-PO perfectly proves that great technical equipment can easily go along with low cost of ownership. The box coater can be equipped with a dome, flip-over or other substrate holder options providing great process flexibility. Rapid cycle times allow for optimum throughput making the 380-PO the perfect choice for all mid to small sized optics production needs. Optional dry pumping makes it suitable also for UV/DUV coating.


Flexibility & Efficiency

  • Rapid cycle times with Meissner trap water vapor pumping.
  • High temperature and low temperature substrate heating options.
  • Single EBG and thermal resistive sources.
  • Optional high power Ion Gun for low stress and shift free coatings.
  • 3-sector dome, full dome or flip-over system options on request.
  • User-friendly HMI control software.
Close-up of industrial machine components with circular housing and lever arm
Close-up of a machine chamber with illuminated round component inside
Interior of industrial machine with circular component and multiple openings above mechanical parts

Tech Specs

Substrate material: Polymers, glass, and IR optics
Substrate holder: Full dome, planetary system or 3- sector dome
Capacity: Up to 74 lenses with Ø 70 mm with full dome
Dimensions (wxdxh): 1609 x 2157 x 2195 mm / 64 x 85 x 87 inches
Weight: Approximately 1570 kg / 3461 lb

All technical data are subject to change without notice. Verify details with Satisloh.

Documents

380-PO Thin-film coater (Brochure)
pdf - 353 KB
Download
Person holding a tablet displaying charts and graphs from a production performance report.

Purchase a 380-PO and get a

MES-360 Lite for free.


Your introduction to Industry 4.0 with MES-360 Lite
Increasing transparency and visibility of your equipment performance is key to optimizing your production and reducing costs. MES-360 Lite provides daily reports using pre-established KPI to track.
