VFT-orbit-2E

Economically priced free form lens generator

VFT-orbit-2E is the best choice for mid-sized production labs. Consequently, it is based on VFT-orbit-2i technology. Certainly, upgrades are available (optionally).

Satisloh’s proprietary ophthalmic milling spindle enables 24,000 RPM.
As result, the generator processes up to 75 lenses per hour.
Secondly, VFT fast tool with “voice-coil” technology ensures ultimate surface accuracy, smoothness and short “cut-to-polish” processes.
Moreover, a power-save mode ensures that air bearings automatically turn off when the machine is idle. So, it saves up to 20% of energy.
Also, the machine design provides easy access for service & maintenance.
Finally, the automated version of VFT-orbit-2E comes with loader. Ensure that VFT-orbit-2E entry level machine comes without automation but can be upgraded later on.

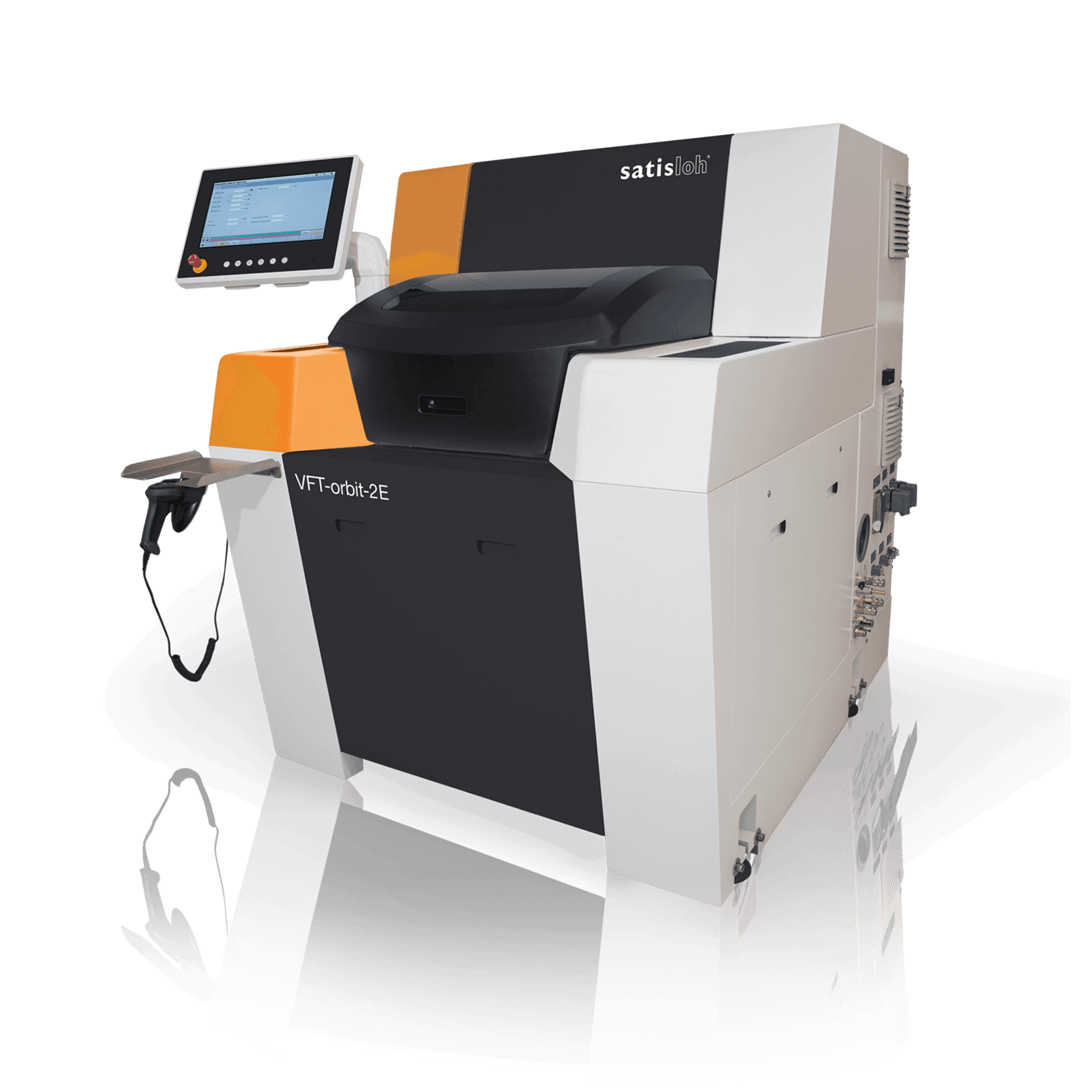

Automated industrial machine with side touchscreen control monitor for precise manufacturing processes.

Close-up of a machine processing a glass lens between two precision tools

Close-up of a machine processing a glass lens with a rotating precision tool.

Tech Specs

Productivity:	Up to 75 lenses/hour
Working range:	Concave: milling: -14.5 dpt, turning: up to -30 dpt. Convex: milling and turning: +30 dpt.
Lens material:	All organic materials
Dimensions (wxdxh):	1270 x 1501 x 1832 mm / 50 x 60 x 72 in
Weight:	2200 kg / 4850 lb
